socomec MASTERYS BC 20 - Page 9

9
ENGLISH
MASTERYS BC 15-40 kVA - Ref.: IOMMASBCXX09-EN 01
ENGLISH
2. UNPACKING AND INSTALLATION OF THE UNIT
2
B
1
C
2
A
1

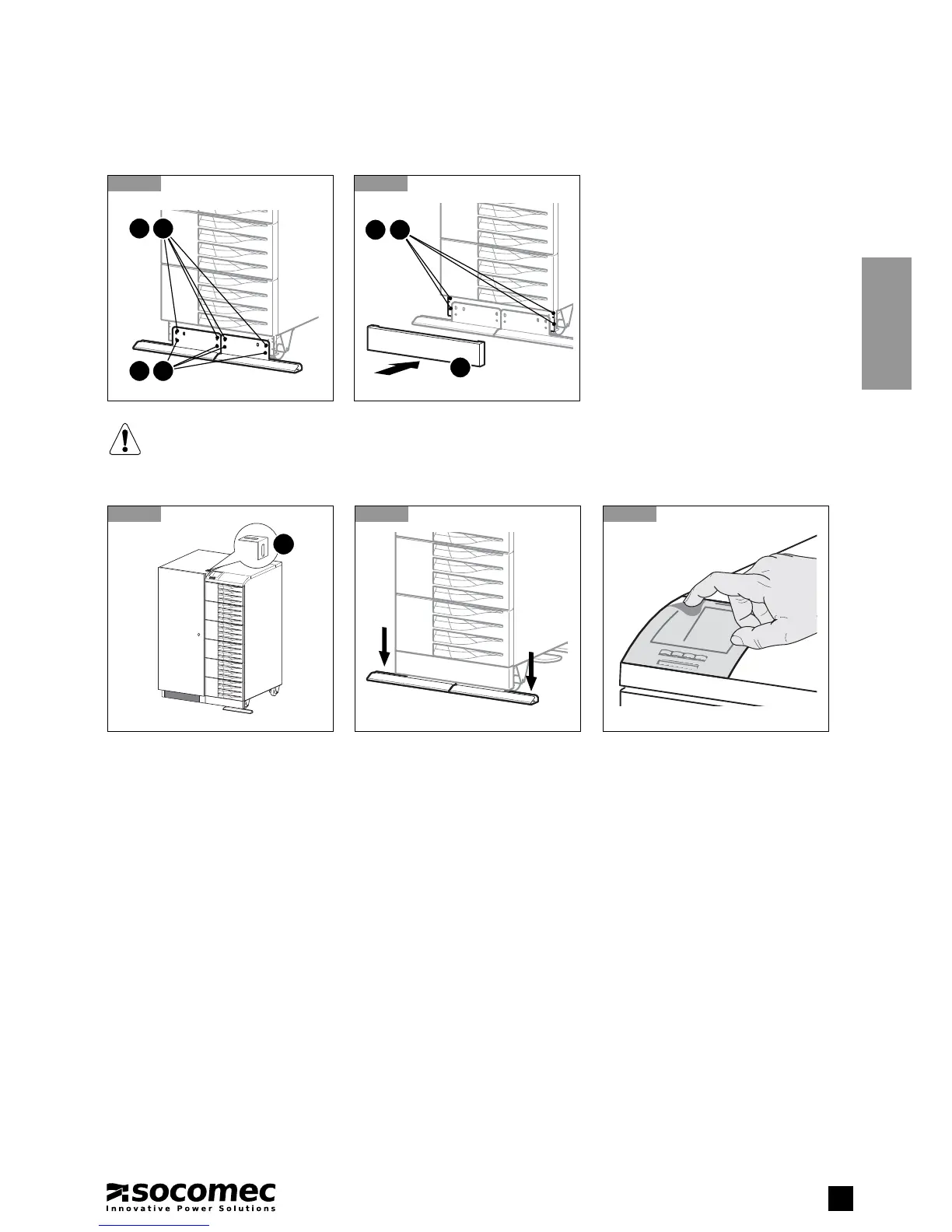

For UPS 15-40kVA height 1400mm without internal battery:
• with battery cabinet fitted alongside: remove leveller E from the cabinet. Fasten the UPS to the cabinet using the
bracket E supplied (figure 2.2.2-12).
• without battery cabinet fitted alongside: secure the UPS to the floor (figure 2.2.2-13).
2.2.2-10
Tighten screws B
Tighten screws C
2.2.2-11
Tighten screws A
Remove the label
2.2.2-142.2.2-13
2.2.2-12
E
