socomec NETYS PR 1000 Rack 1U - INSTALLATION; MOUNTING THE UPS IN A RACK

6
NETYS PR RACK 1U - Ref.: IOMNETPRXX01-GB 02

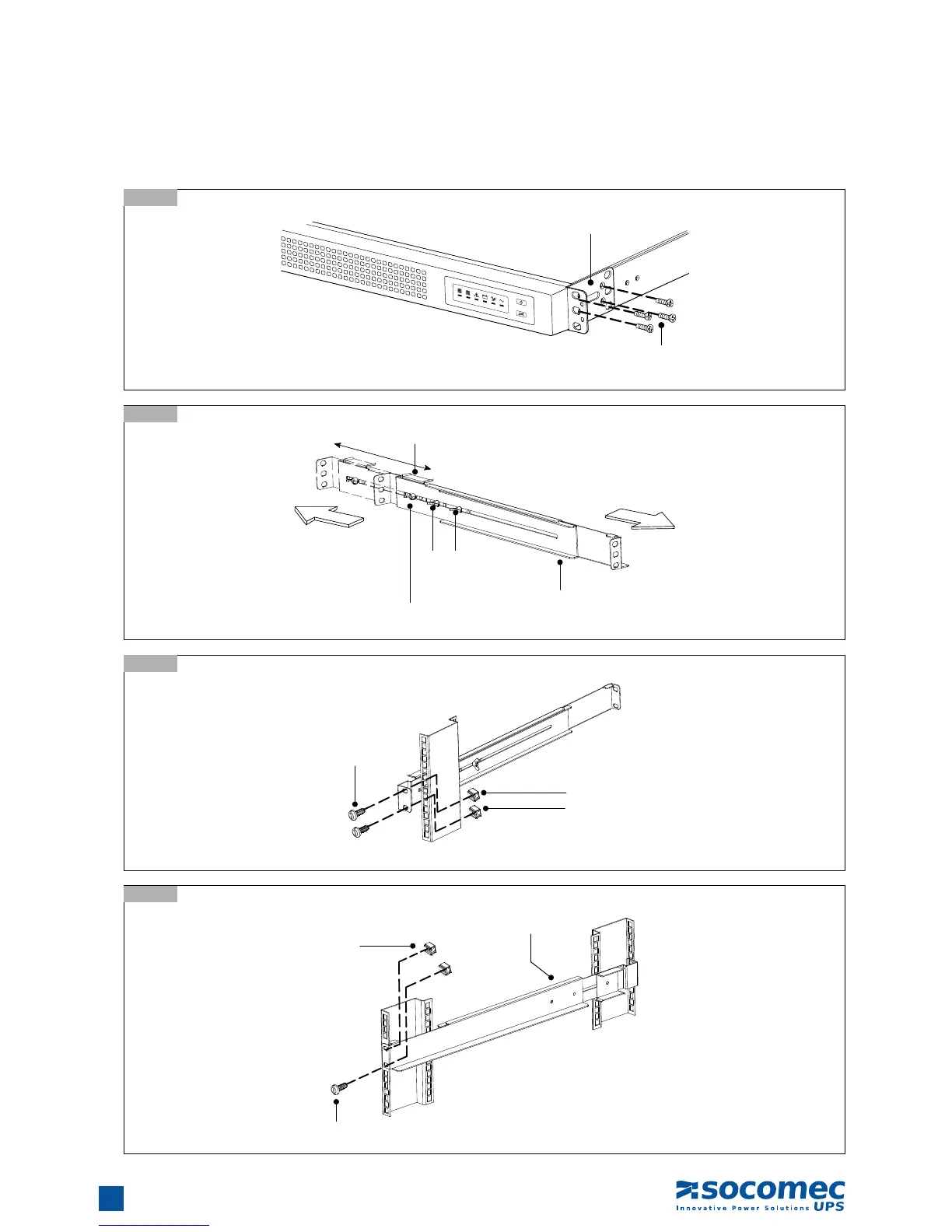

3. INSTALLATION
3.1. MOUNTING THE UPS IN A 19" RACK
3.1-1
Mounting Bracket for a 19" Rack
3.1-2
Adjusting the Rail Depth
3.1-3
Securing the Rear Rail
3.1-4
Securing the Front Rail
Mounting Bracket
M3 x6 Bracket Screws
Rear Hold-Down Bracket
Rear
Front
Assembly
Wing Nuts
Assembly Wing
Nuts
Wing Nut for Rear
Hold-Down Bracket
Clip Nuts
M6x 10
Rear Rail Screws
Clip Nuts
M6 x10
Front Rail Screw
Rail Assembly
