ExTErNAL bATTEry cHArGEr. NrT-OP-bcH48V - NrT-OP-bcH72V
Battery charger Model NRT-OP-BCH48V NRT-OP-BCH72V
Compatible with UPS model NRT-U1700 nRT-U2200 nRT-U3000
Input Single-phase 230 V AC (100-250 V); 50/60 Hz
Input current (max) 5.2 A 7.8 A
Input protection 10 A fuse
Output power Selectable: 220 W or 440 W Selectable: 330 W or 660 W
Output current Selectable: 4 A ±0,4 A or 8 A ±0,4 A
Output protection 20 A fuse
Output voltage 54,6 V DC ±1% 81,9 V DC ±1%
Dimension (WxDxH) 440 x 135 x 88 mm
Weight 3,18 kg 3,28 kg
WARNING!
The input to the battery charger should be connected to mains
or utility supply not to the UPS output.

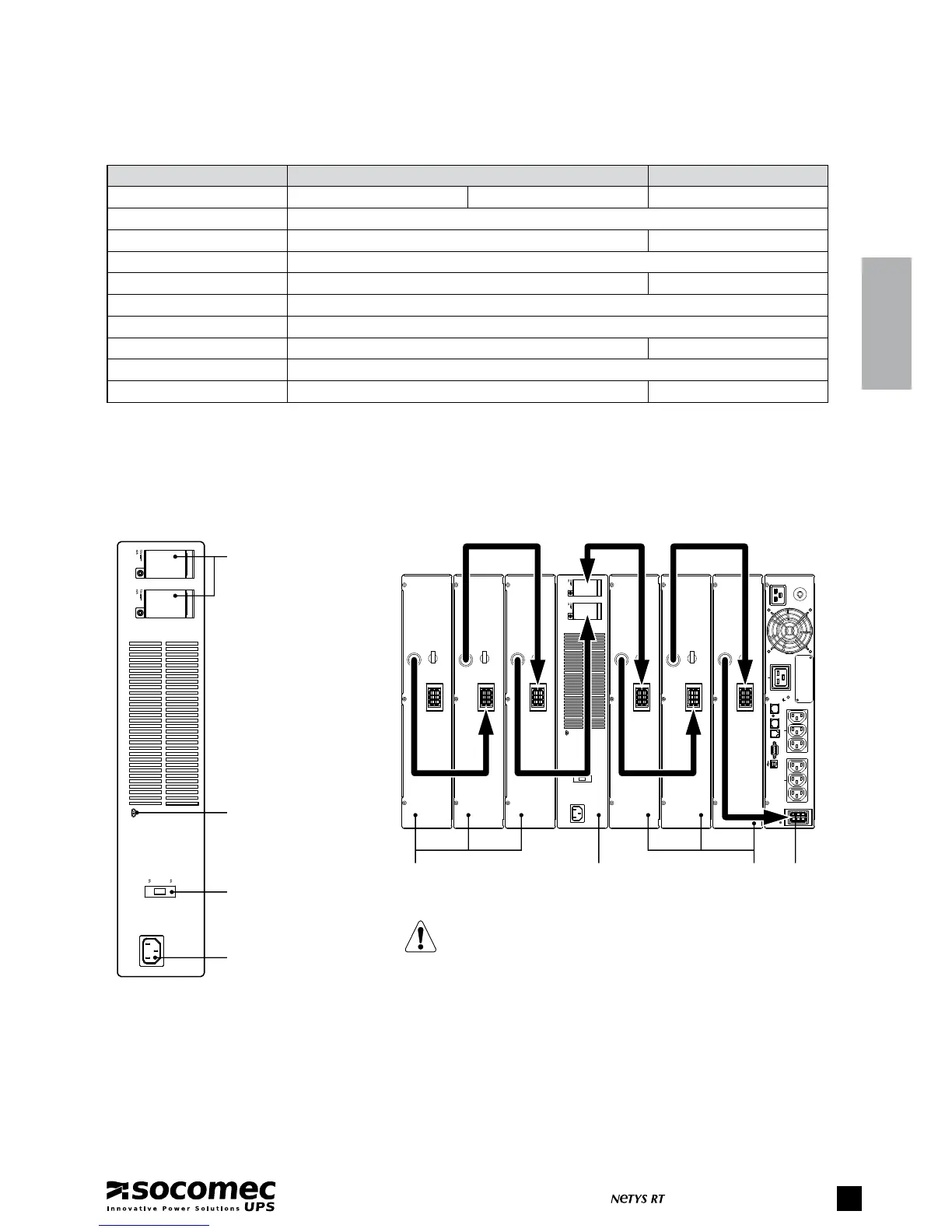

Battery extension
socket
IN 230 V~
Output current
selector (4 A - 8A)
Status LED
- green: normal
- red: fault
148 DRWNETRT-XX
IN
OUT
LOAD 1 LOAD 2
RS232
BREAKER
INPUT
EPO
SURGE PROTECT
LOAD 3
INPUT
40A
48V
COM. SLOT
UPSEBM EBMBattery charger
149 DRWNETRT-XX
