SR5 MANUAL
14- CHANGING BRAKE PADS.

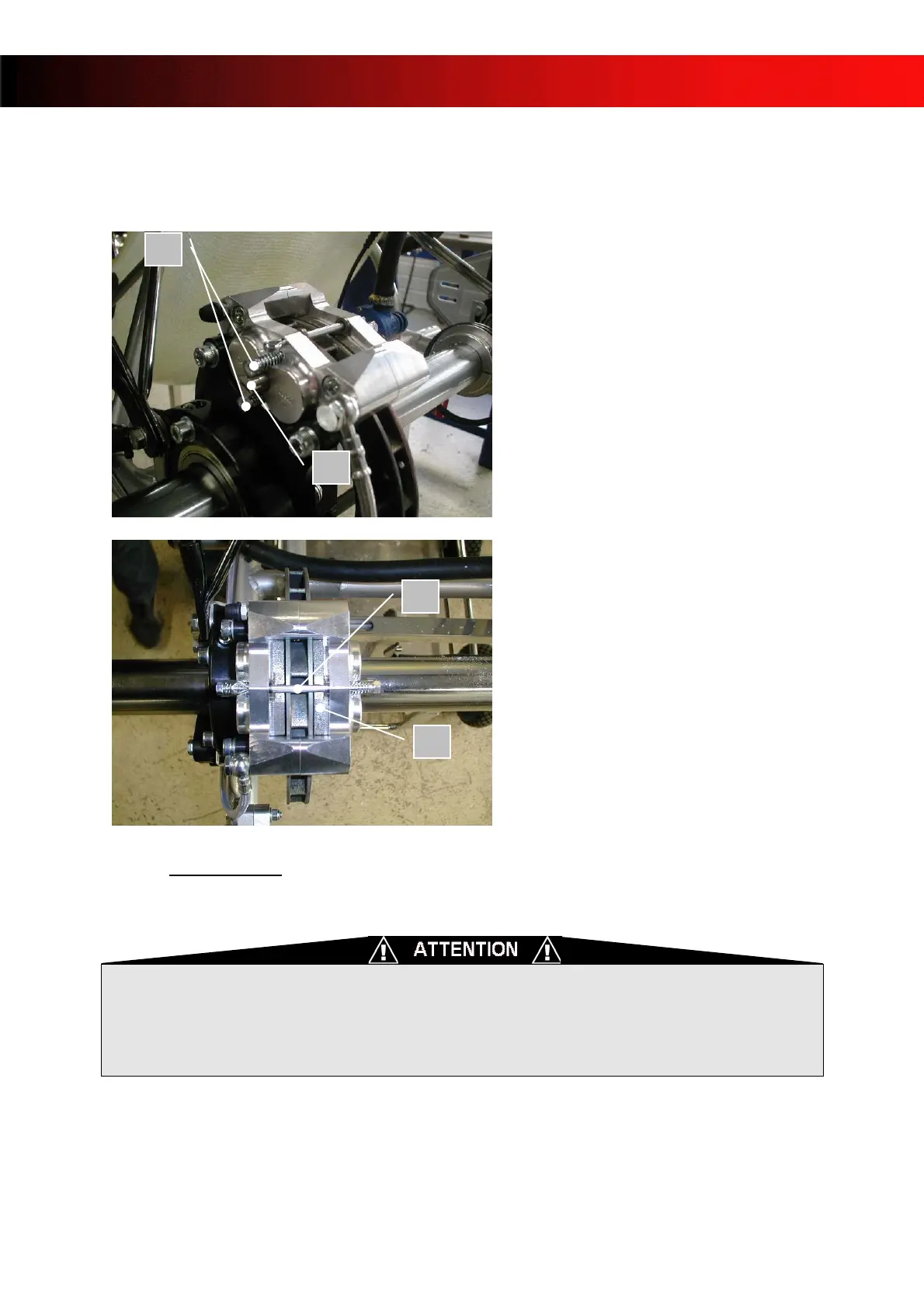

¾ Unscrew the piston adjustment screw
to its back stop (1).
1
2
¾ Remove the 4 screws with springs (2).
¾ Remove the safety pin (3).
¾ Remove the pads; insert the new ones
(4).
¾ Insert the safety pin (3).
3
¾ Place the 4 screws with springs with
drop of glue.
¾ Tighten the screw (1) until the pads
touch the disk; unscrew (1) by one and
one quarter of a turn to get the gap
between the pads and the disk.
ADJUSMENTS
: the adjustment of the gap between the disk and the pads is done
with the screw (1).The standard gap is 1 mm.
9 The brake system is a key safety item of the kart. Regularly check all its components.
In case of doubt, do not drive before fixing the problem.
4
9 Bad maintenance of the brakes can lead to severe, even fatal injuries.
9 Never repair a break system on your own; return it to SODIKART through your local
dealer.
Two types of brake pads are available:
- Racing (Origin brake pads) – Ref. PC0351.032
- Ceramics – Ref. PC0351.030
- 30 -
