SR5 MANUAL
7-ASSEMBLY OF THE KG BODYWORK.
7-1 PREPARING THE KG SUPPORTS.
In order to comply with the CIK/FIA rules, carefully prepare the supports as indicated below.
Do not respect the dimensions may lead to relegation during a race.

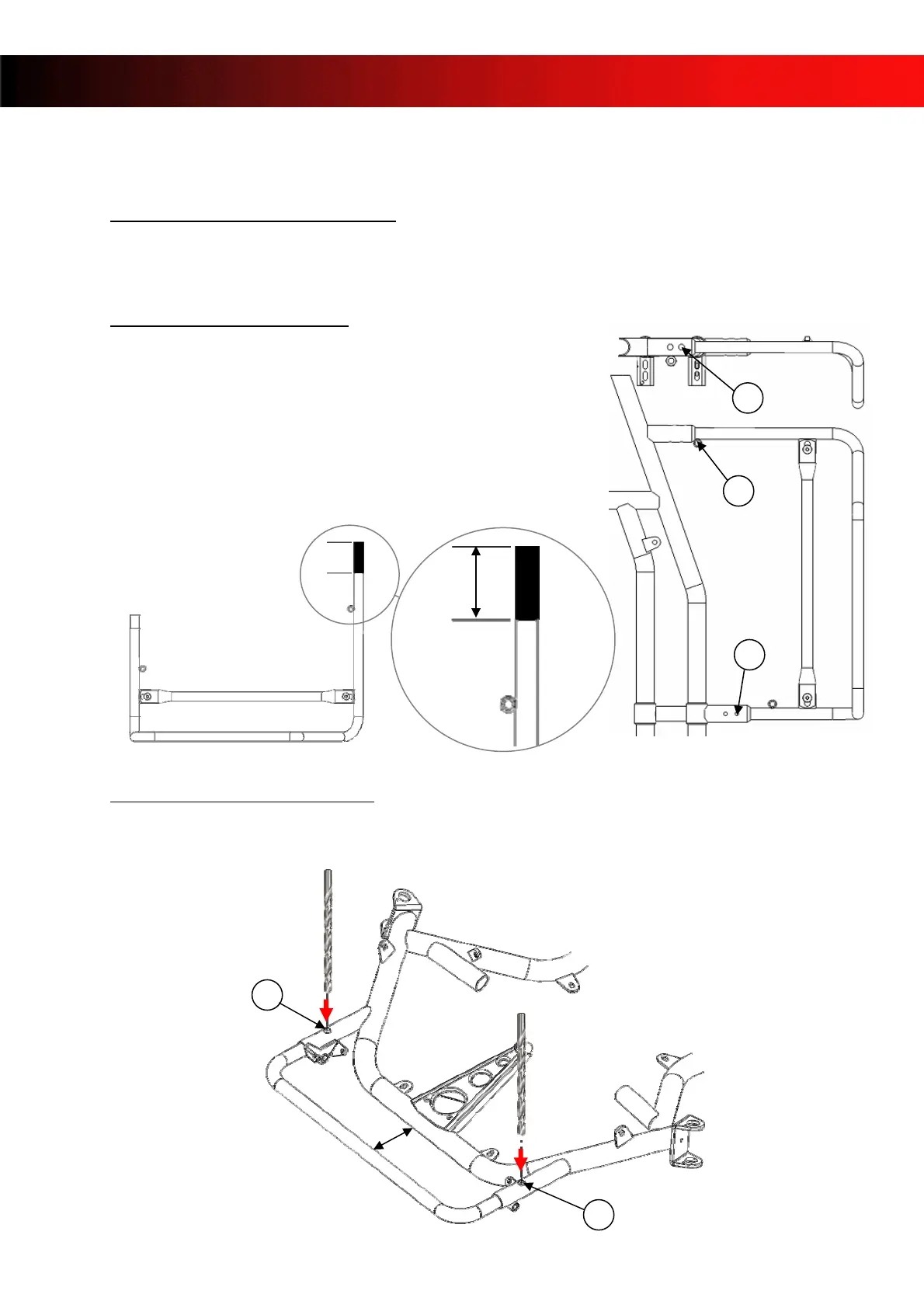

7-1-1 KG SIDE POD SUPPORT
2
2
1
1. Cut 50mm the end of the side pod support. (see below the
picture)
2. Insert the side pod support into the bushings until the
ring (1) of the side pod support touch the bushing. (see the
right picture)
3. Use the holes (2) on the frame to drill the side pod
support and bushings with Ø6.5mm drill.
50mm
7-1-2 SPOILER LOWER SUPPORT
1. Place the lower support at 110mm of the frame.
2. Use the two holes (1) of the frame to drill the lower support with a drill Ø6.5mm.
1
110mm
1
- 13 -
