SR5 MANUAL
1
2
3
4

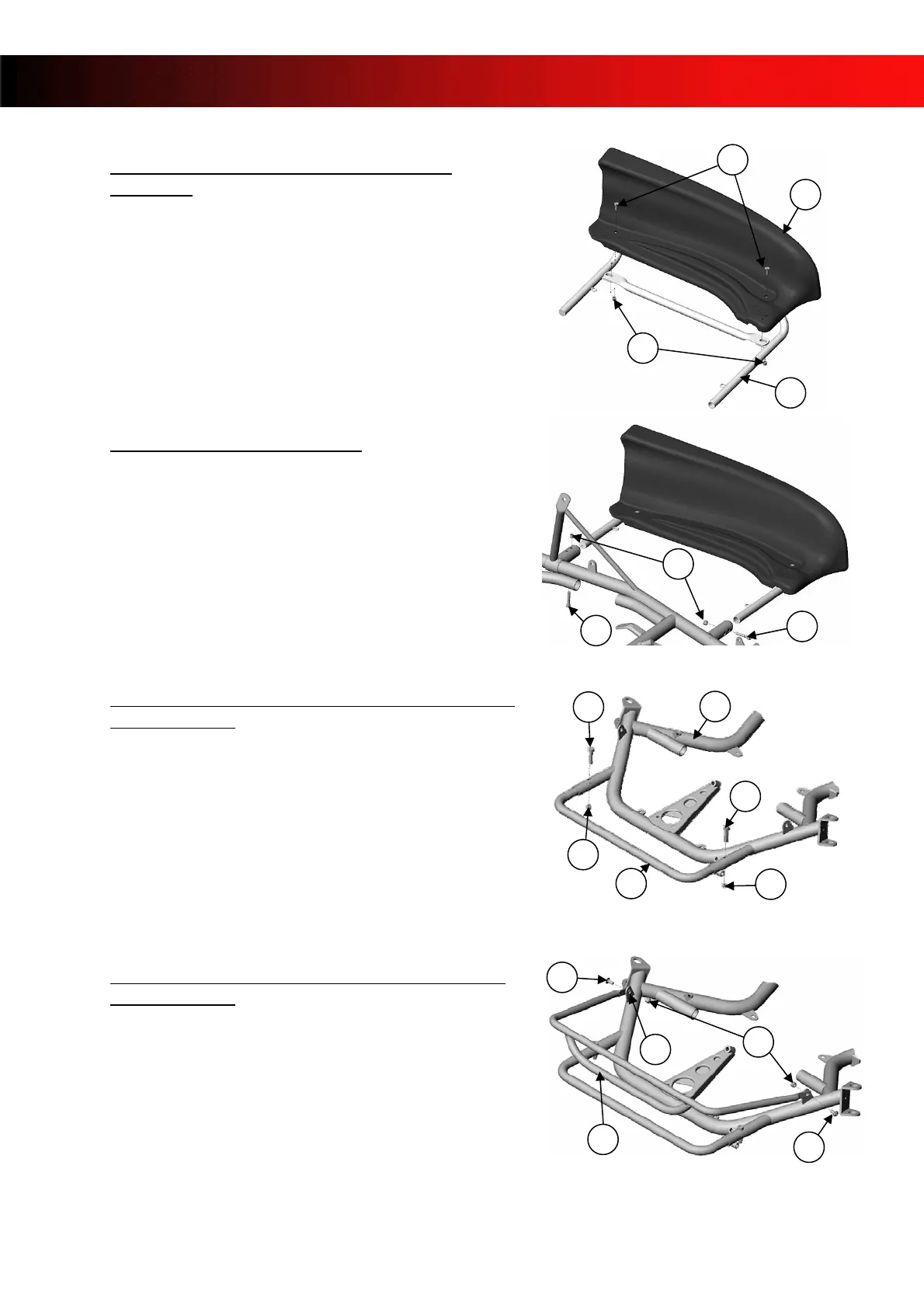

7-2 ASSEMBLY OF THE SIDE POD ON ITS
SUPPORTS
¾ Place the side pod (1) on the side pod support (2).
¾ Place the screws (3) through the side pod (1) and
the side pod support (2).
¾ Tighten the assembly with the nuts (4).
Refer to the SR5 spare parts catalogue for the
bolting
2
1
1
7-3 ASSEMBLY ON THE FRAME
¾ Check that the bushings are pushed in the frame.
¾ Insert the side pod assembly into the bushings.
¾ Tighten with the screws (1) and the nuts (2)
Refer to the SR5 spare parts catalogue for the
bolting
7-4 ASSEMBLY OF THE SPOILER LOWER SUPPORT
ON THE FRAME
1
3
4
3
4
2
¾ Insert the spoiler lower support (1) into the front
cross member of the frame (2).
¾ Tighten with the screws (3) and the nuts (4).
Refer to the SR5 spare parts catalogue for the
bolting
2
4
3
1
3
7-5 ASSEMBLY OF THE SPOILER UPPER SUPPORT
ON THE FRAME
¾ Place the spoiler upper support (1) on the outer
face of the lug (2).
¾ Tighten with the screws (3) and the nuts (4).
Refer to the SR5 spare parts catalogue for the
bolting
- 14 -
