SR5 MANUAL

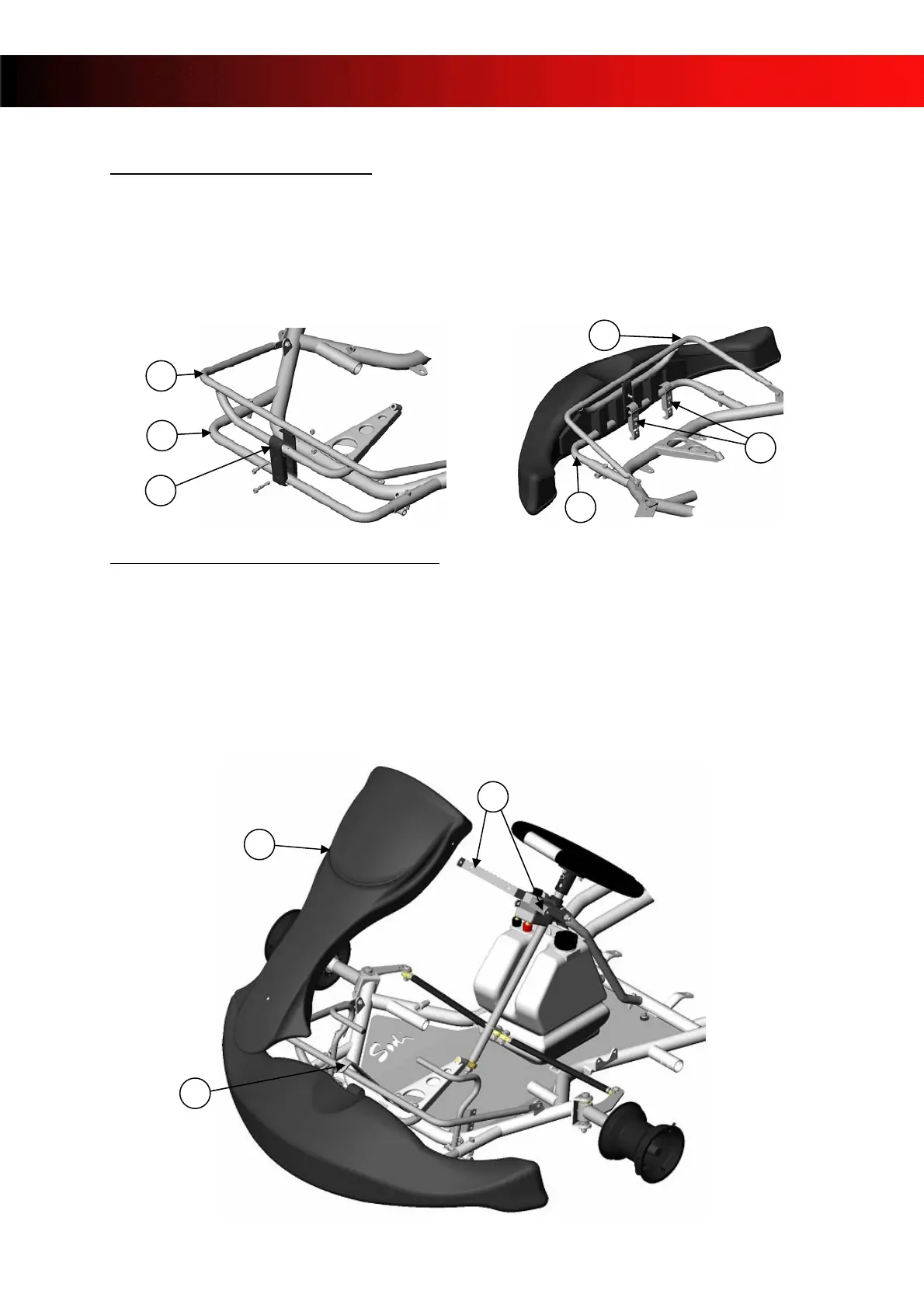

7-6 ASSEMBLY OF THE SPOILER
¾ Assemble the spoiler fixation kit (1) between the spoiler upper support (2) and the
spoiler lower support (3) with two screws and two nuts.
¾ Place the flanges (4) between the spoiler support (2) and (3), then lock.
Refer to the SR5 spare parts catalogue for the bolting
4
3
2
3
1
2
7-7 ASSEMBLY OF THE NASSEAU PANEL
¾ Place the nasseau panel (1) on the nasseau panel upper support (2) and the nasseau panel
lower support (3).
¾ Draw the 3 drill points on the nasseau panel (1).
¾ Drill the Ø6.5mm holes.
¾ Place the nasseau panel (1) on its supports (2) and (3)
¾ Tighten the nasseau panel (1) on its supports (2) and (3) with screws, nuts, and washers.
Refer to the SR5 spare parts catalogue for the bolting
3
1
2
- 15 -
