SR5 MANUAL
6-4 ASSEMBLY OF THE SEAT STIFFENERS
.

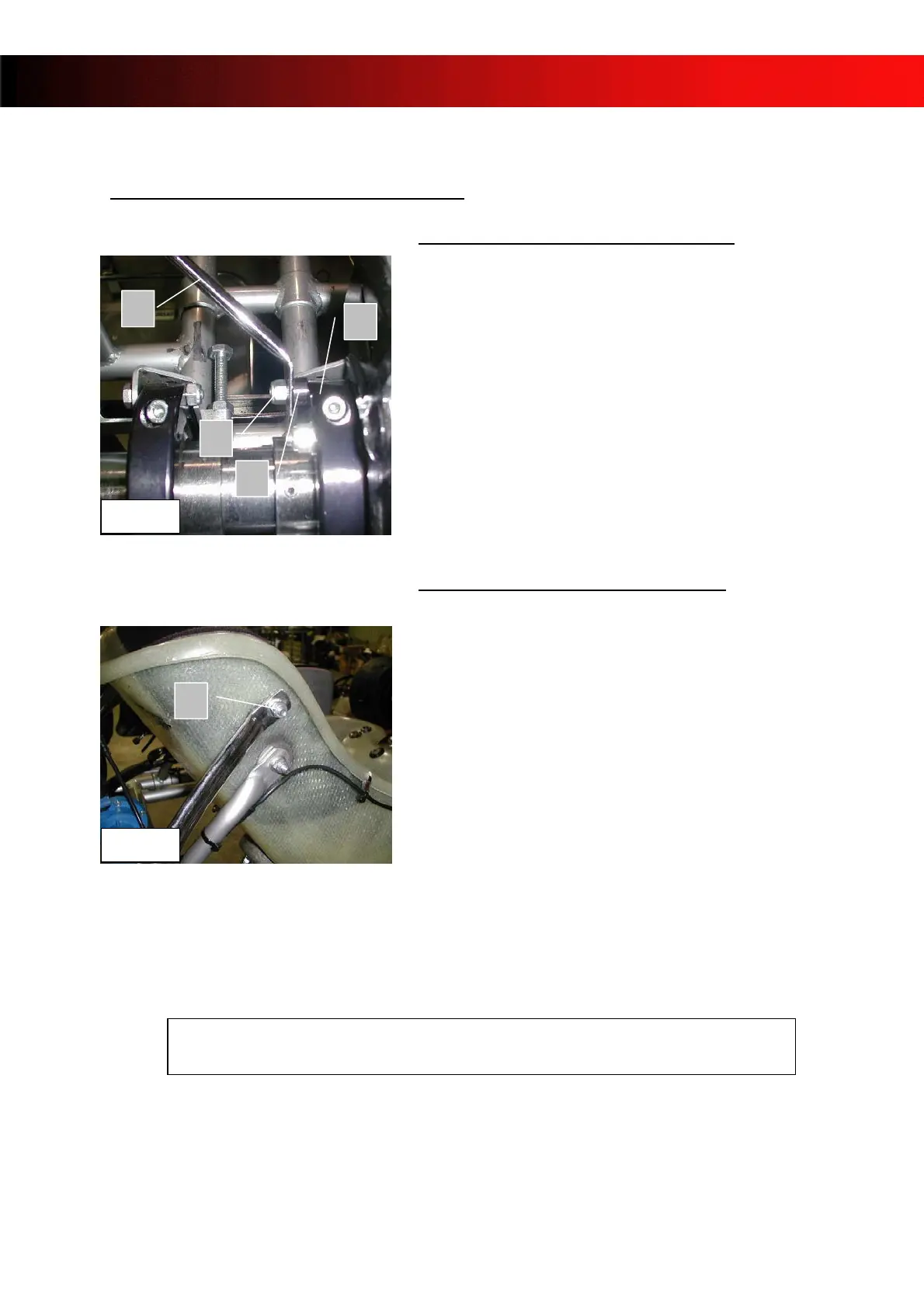

ASSEMBLY OF THE LOWER END (PIC 1)
1. Place the CHC M8 screw (1) in the hole of the
bearing support (2).
2. Place the stay bolt PC 0332.004 (3) as indicated.
3. Put the seat stiffener lower end (4) in place.
4. Put the bolt in place and pre-tighten.
1
2
3
4
PIC 1
For screws and bolts references, refer to the
spare parts catalogue.
ASSEMBLY OF THE UPPER END (PIC 2)
5. Place the upper end of the stiffener (5).
6. Make sure there is no contact with the exhaust
system and with any part of the engine.
If necessary, slightly bend the stiffener.
7. Drill a 8.5 mm diameter hole (5) in the seat.
8. Place one FHC M8 screw + conical washer.
5
PIC 2
9. Tighten both upper and lower end.
For screws and bolts references, refer to the
spare parts catalogue.
FOR OTHER TYPES OF STIFFENERS, PLEASE REFER TO THE SR5 SPARE
PARTS CATALOGUE OR TO THE ITAKA CATALOGUE
- 12 -
