Sofar solar BTS Series User Manual

BTS E5~20-DS5 user manualV1.1
Copyright © Shenzhen SOFARSOLAR Co., Ltd
28
4.1.
Preparation of Connection Cables

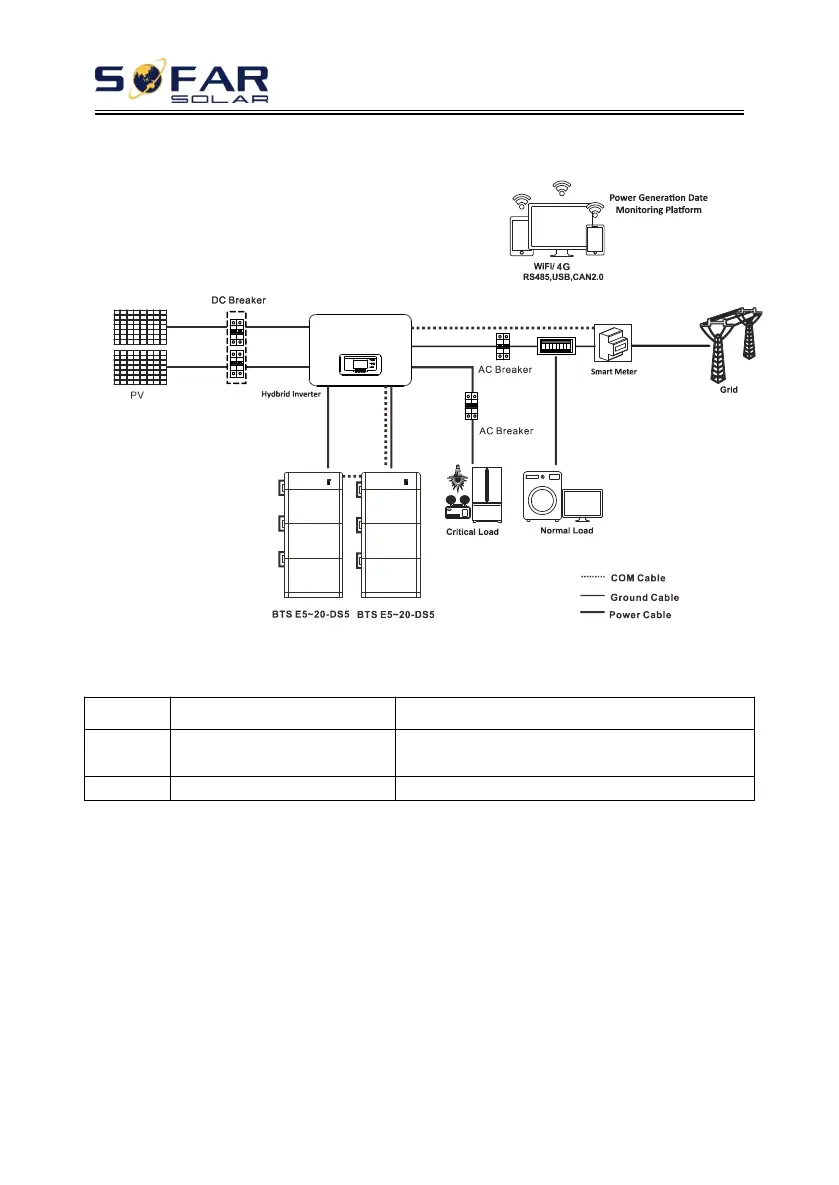

Figure 4-1 System connection diagram
Table 4-1 Cables prepared by customers
No
Cable
Recommended specifications
1
Power cable connect
the BDU to inverter
UL10269 10AWG
2
Grounding cable
UL10269 8AWG
4.2. Electrical Connection for Internal System
4.2.1 Protection grounding cable connection
Procedure：
As shown in Figure 4-2, connect the grounding points between modules
with protective grounding cables and ensure reliable connection of
grounding cables.
