4.3.
External Electrical Connection
4.3.1 External Electrical Connection
The following is an example of the SOFARSOLAR storage inverter HYD
5~ 20kTL-3PH：

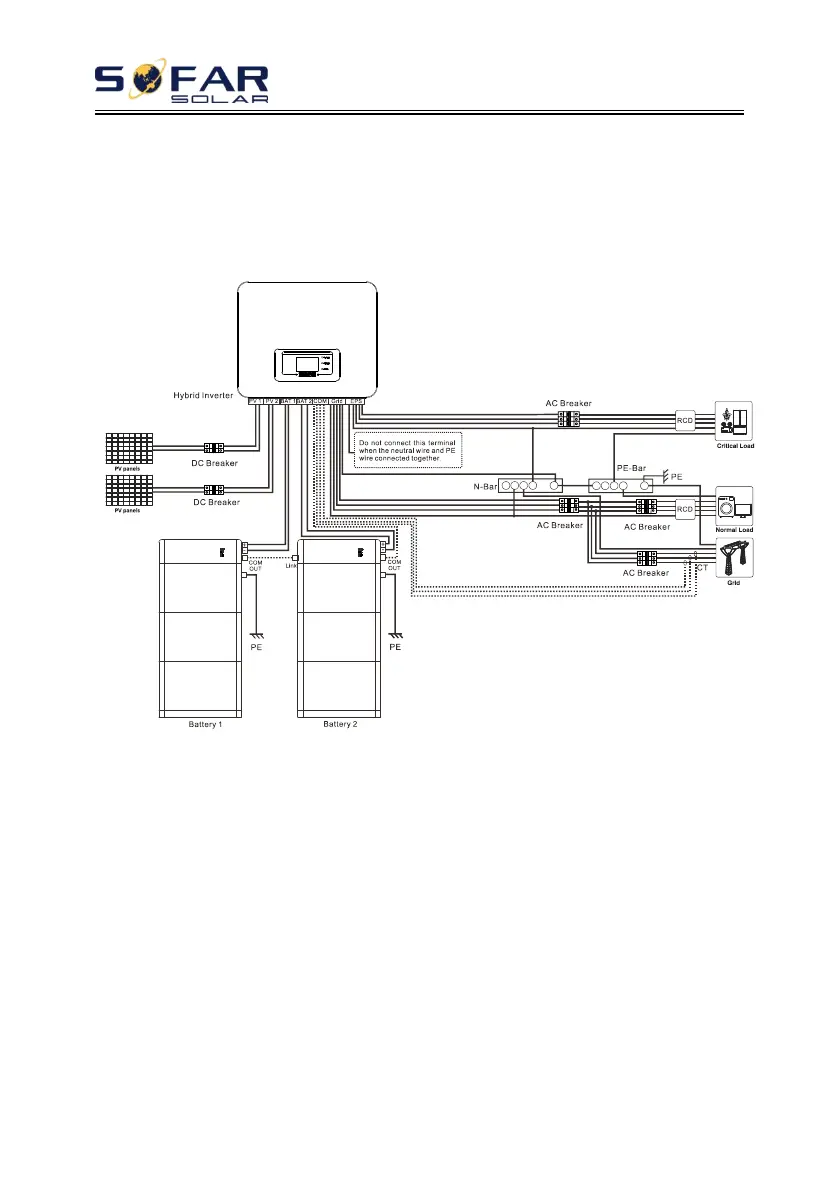

Figure. 4-6 System Connection Diagram (Australia)
This is the schematic diagram of the application system where neutral line
and ground line are connected together. For example, in Australia, New
Zealand, South Africa and other countries, please follow the local safety
requirements of the power grid.
Note: According to Australian safety regulations, the neutral cables
on the grid-connected side and EPS side must be connected together,
otherwise the EPS function will not work.
