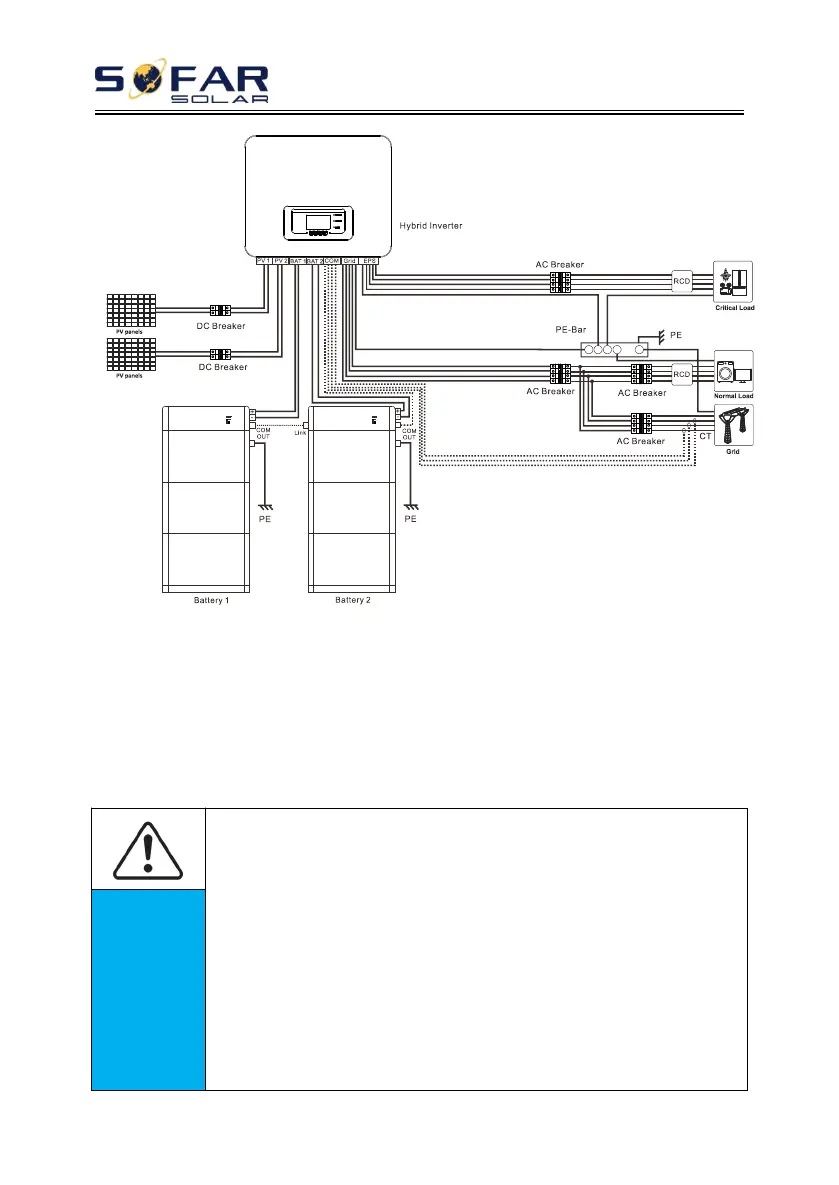

Figure. 4-7 System Connection Diagram
4.3.2 External ground Connection of the PGND cable
Step1: Crimp OT terminals
When stripping the cable, do not scratch the core of the
cable.
The grounding cable must be prepared by yourself. the
grounding cable must be 8AWG and meet the
requirements for outdoor use.
The cavity formed after the conductor crimping plate of the
OT terminal is fully covered with the cable core, and the
cable core is tightly bound to the OT terminal. The pull-out
force after the crimping complies with UL486A and UL310
To Next Page
