SOFAR 3.3~12KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
- 12 -

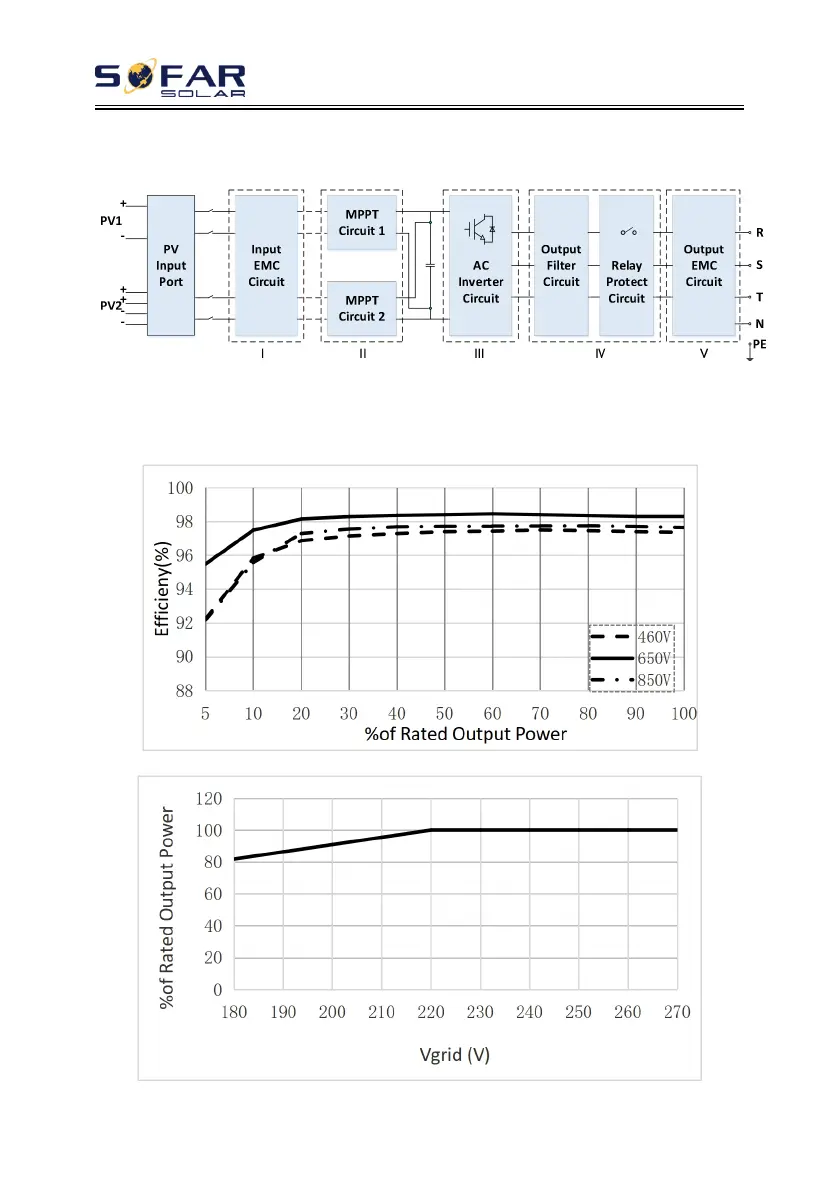

2.3. Electrical block diagram
Figure 2-8 Schematic diagram
2.4. Efficiency and derating curve
Figure 2-9 Power efficiency curve (take 12KW for example)
Figure 2-10 Rated Power ratio vs Grid Voltage
