Communication function
RS485
CT
Cable size
0.5~1.5mm²
0.5~1.5mm²
Outside diameter
2.5~6mm
2.5~6mm

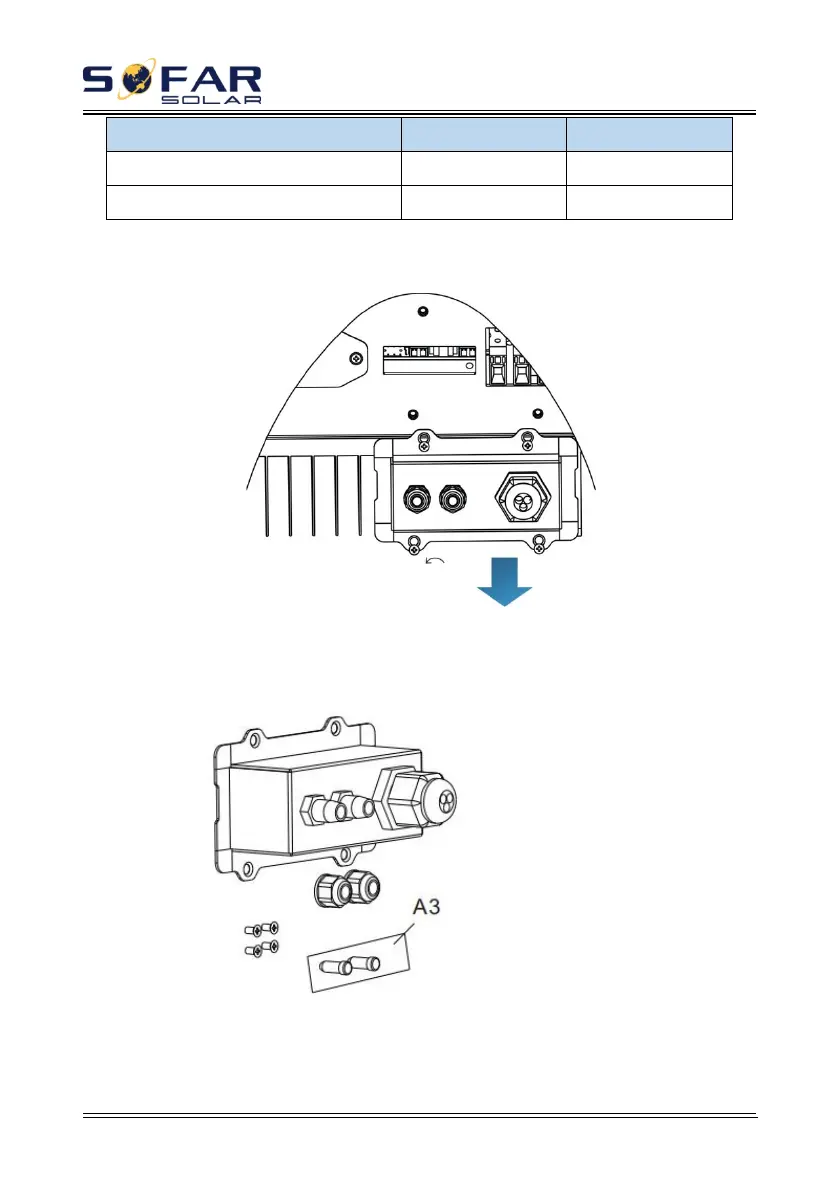

Step1 Remove the communication waterproof cover using a screwdriver;
Figure 4-18
Step2 Unlock the waterproof cable gland, remove the stopper in the
waterproof connector;
Figure 4-19
A3: Waterproof stopper
Step3 Select appropriate cable according Table4-2,remove the insulation layer
using a wire stripper, the length of the wire core is about 6mm,insert the cable
