HYD 3000 ... 6000-EP User manual

- 20 -

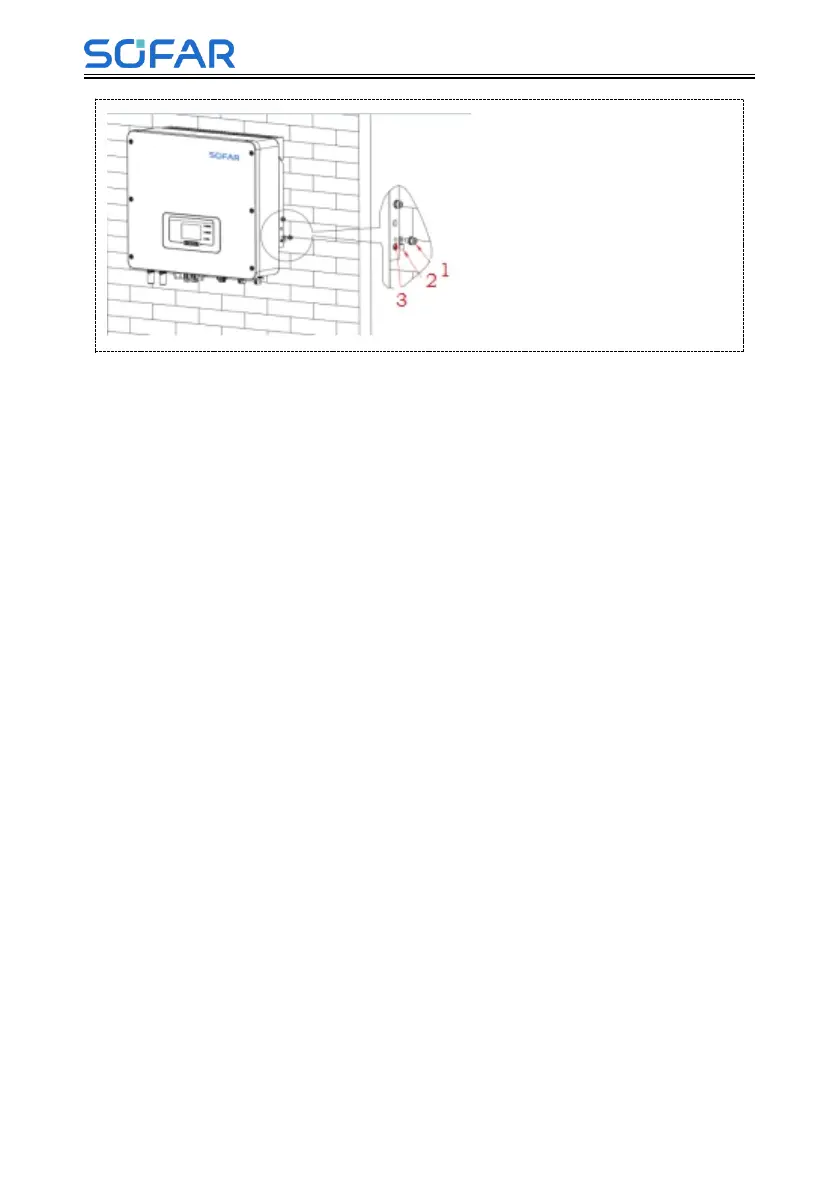

1.Screw

2.OT Terminal

3.Tapped hole

③

4.3. PV Connection

Procedure:

Step 1

Select the appropriate cable type and specifications according to the

table4-3.Remove cable glands from the positive and negative connectors.( It is

recommended that the positive and negative be distinguished by different colors).

Step 2

Remove the insulation layer with an appropriate length from the positive and

negative power cables by using a wire stripper as show in Fig.

①

Step 3

Insert the stripped positive and negative power cables into the positive and

negative metal terminals respectively and crimp them using a clamping tool.

Ensure that the cables are crimped until they cannot be pulled out by force less than

400 N, as shown in Fig.

②③

Step 4

Insert crimped power cables into corresponding housings until you hear a

"click" sound. The power cables snap into place.

Step 5

Reinstall cable glands on positive and negative connectors and rotate them

against the insulation covers.

Step 6
