Sofar HYD 6000-EP - Load Connection

HYD 3000 ... 6000-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd。
- 22 -

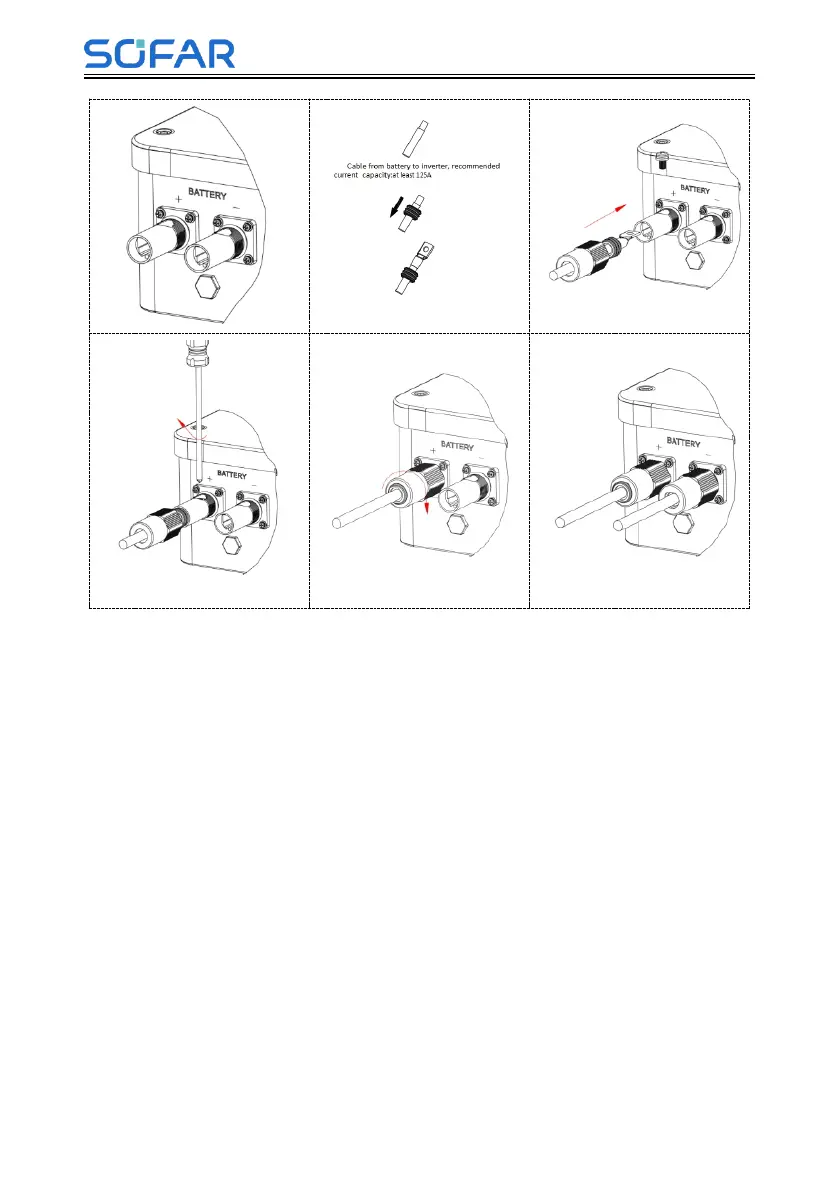

①
②
③
④
⑤
⑥
4.5. Load connection
Procedure:
Step 1
Select appropriate cables according to Table4-3, Remove the insulation layer
of the load output cable using a wire stripper according to the figure shown below:
A:15~25mm B:6~8mm .
Step 2
Disassemble the load connector according to the figure shown below: insert
the load output cable (with its insulation layer stripped according to step 1) through
the waterproof locking cable gland .
Step 3
Connect load output cable as per the following requirements:
Connect the yellow-green wire to the hole labeled "PE", fasten the wire using
an Cross screwdriver;
