Connect the brown wire to the hole labeled "L", fasten the wire using an Cross
screwdriver;
Connect the blue wire to the hole labeled "N", fasten the wire using an Cross
screwdriver.
Step 4
Insert the load connector and hear "click", then tighten the waterproof nut at
the instantaneous value, as shown in the figure below, to ensure that the cable is
firmly connected.
Step 5
Connect the connected load connector to the load connector of the inverter.
Turn the ac connector knob to lock until you hear a "click" and the clasp is in place.
Removing the load connector Hold the button to unlock and rotate the
knob counterclockwise to the unlock position, then pull out the load connector,the
following figure
⑦,
Make sure the grid is disconnected before removing the load
connector .

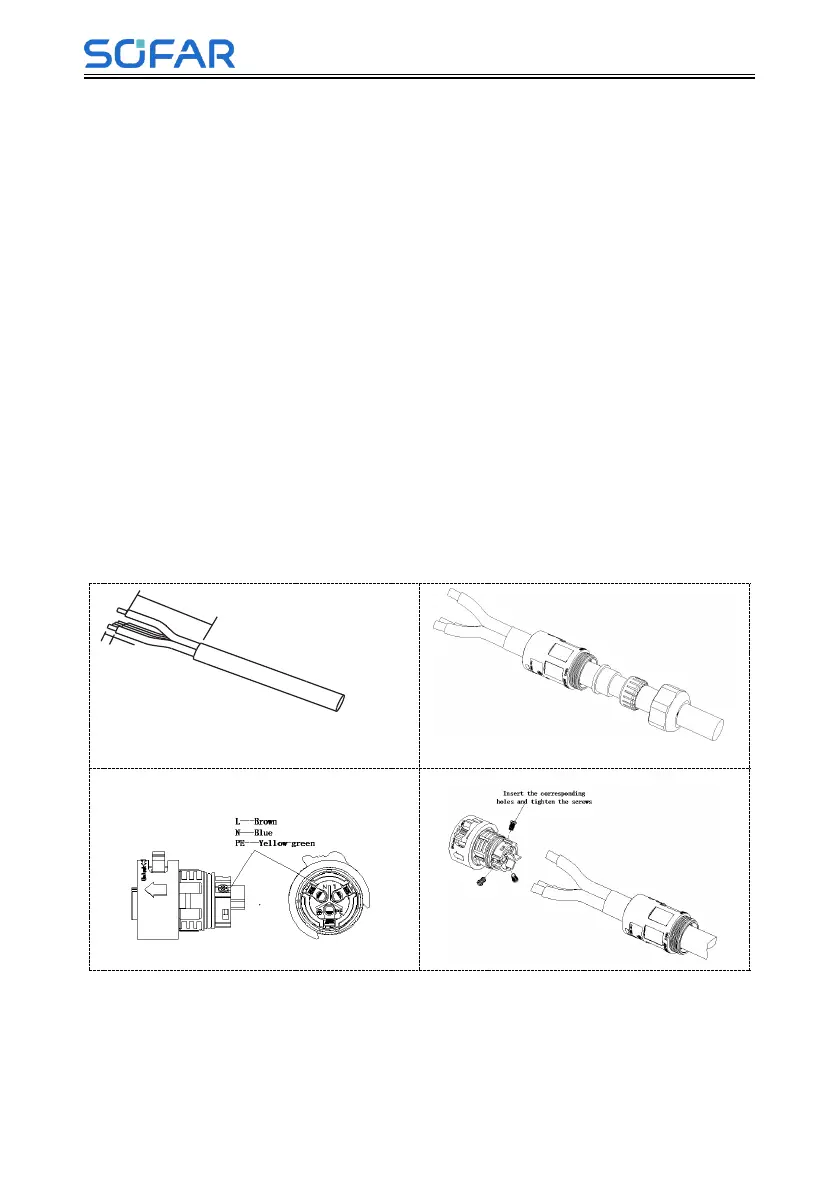

Fig.4-4 Grid connection
