HYD 3000 ... 6000-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd。
Insert the positive and negative connectors into corresponding PV terminals of
the inverter until you hear a "click" sound, as shown in Fig.⑥.
To remove the positive and negative connectors from the inverter, insert a
removal wrench into the bayonet and press the wrench with an appropriate strength,
as shown in Fig.⑦.
Before removing the positive and negative connectors, ensure that
the DC SWITCH is OFF.

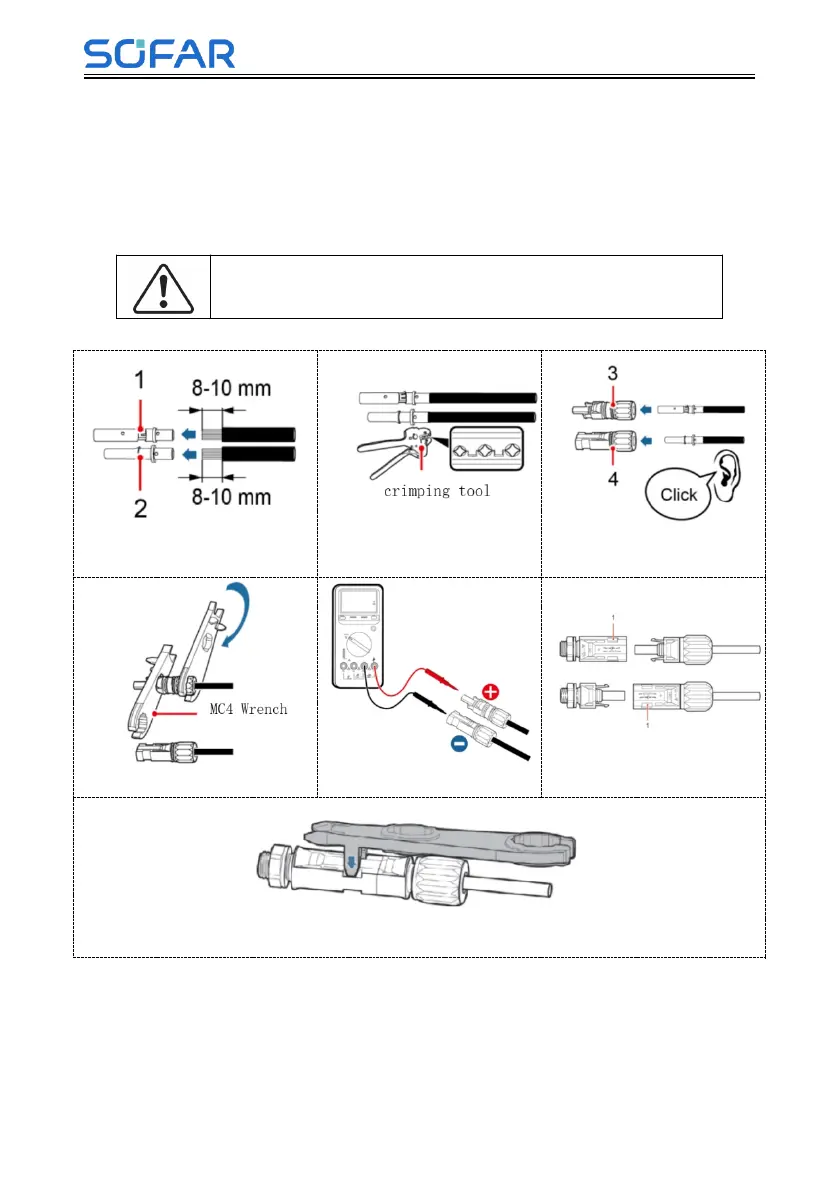

Fig.4-2 Connect PV
1: Positive metal contact
2: Negative metal contact ①
3: Positive connector
4: Negative connector ③
Disconnect PV connectors ⑦
4.4. Battery Connection
Fig. 4-3 Install battery connection
