4.7. External communication interface
4.7.1 USB/WIFI communication interface

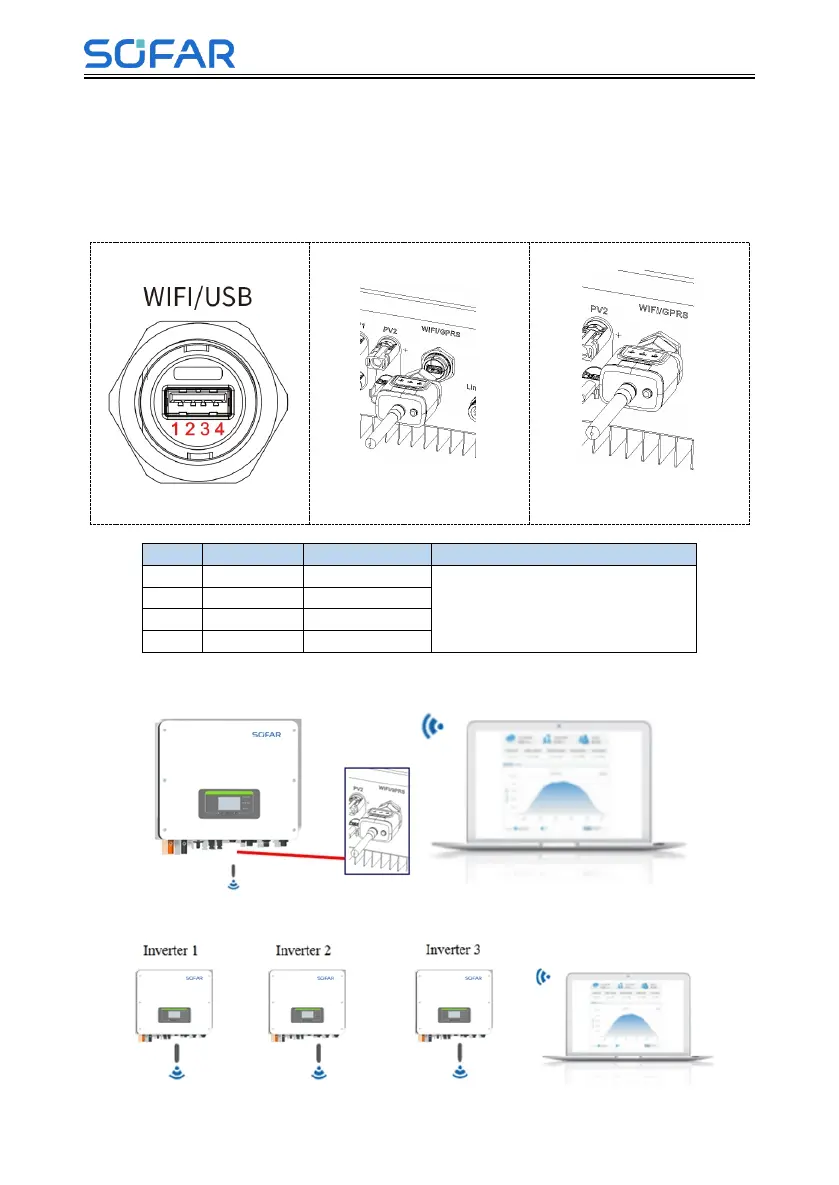

Fig.4-6 USB/WIFI communication interface
①
②
③
Table 4-4 Interface description
PIN
Definition
Function
Note
1
GND.S
USB power -
The USB power supply is
5V/1A; Cannot be used for
external device charging
2
DP
USB data +
3
DM
USB data -
4
VBUS
USB power +
Refer to the figure shown below.
Fig 4-7
Fig 4-8
