HYD 3000 ... 6000-EP User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
- 25 -
If you need to remove the terminals from the machine, use the tool to press on
the direction indicated by the big arrow and pull the terminals out.
Need to dismantle the end connection, to use the tool, as shown in figure
attending

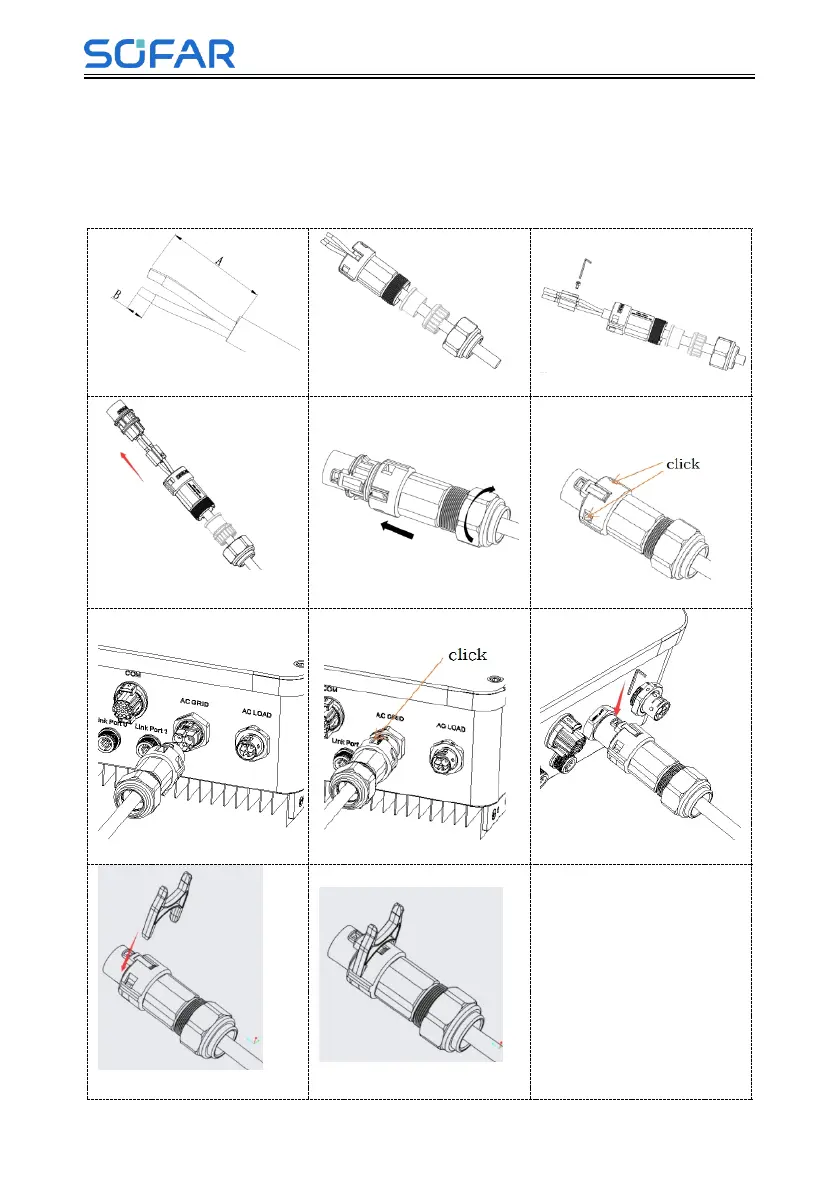

Fig.4-5 Load connection
A:30~50mm
B:3~5mm
