INSTALLATION
38 HYD 5K...20KTL-3PH

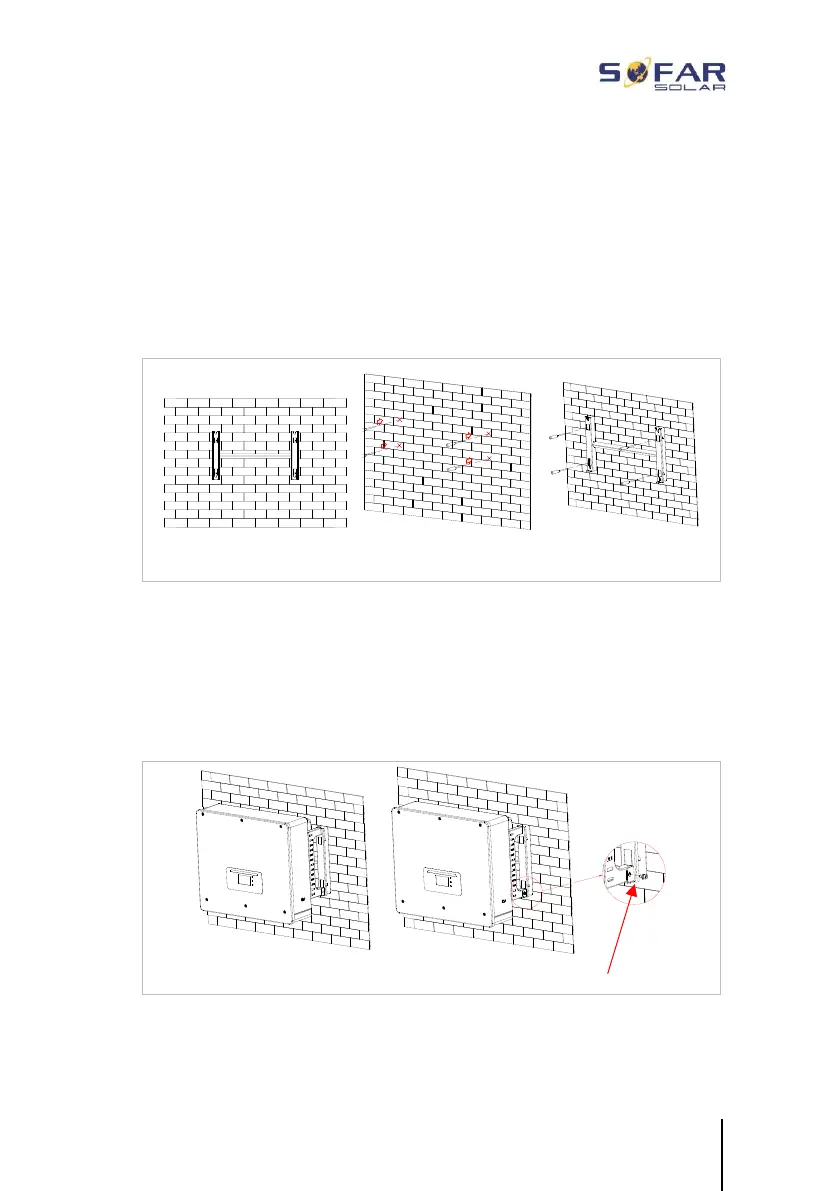

2. Guide the spread screw M8*80 into the hole vertically and ensure
that its insertion depth is sufficient.
3. Align the wall bracket with the hole positions and fasten by
tightening the spread screw with the nuts.
① ② ③
4. Place the inverter in the wall bracket and fasten it with the M6
hexagon screw
5. You can secure the inverter to the wall bracket using a lock.
④ ⑤ M6
