ELECTRICAL CONNECTIONS
54 HYD 5K...20KTL-3PH
5.8 AC connector installation
CAUTION
Electrical voltage
• Ensure that the grid has been switched off before removing
the AC connector
Please follow below steps to install the AC connector.
1. Select the suitable cable in accordance with above diagram.

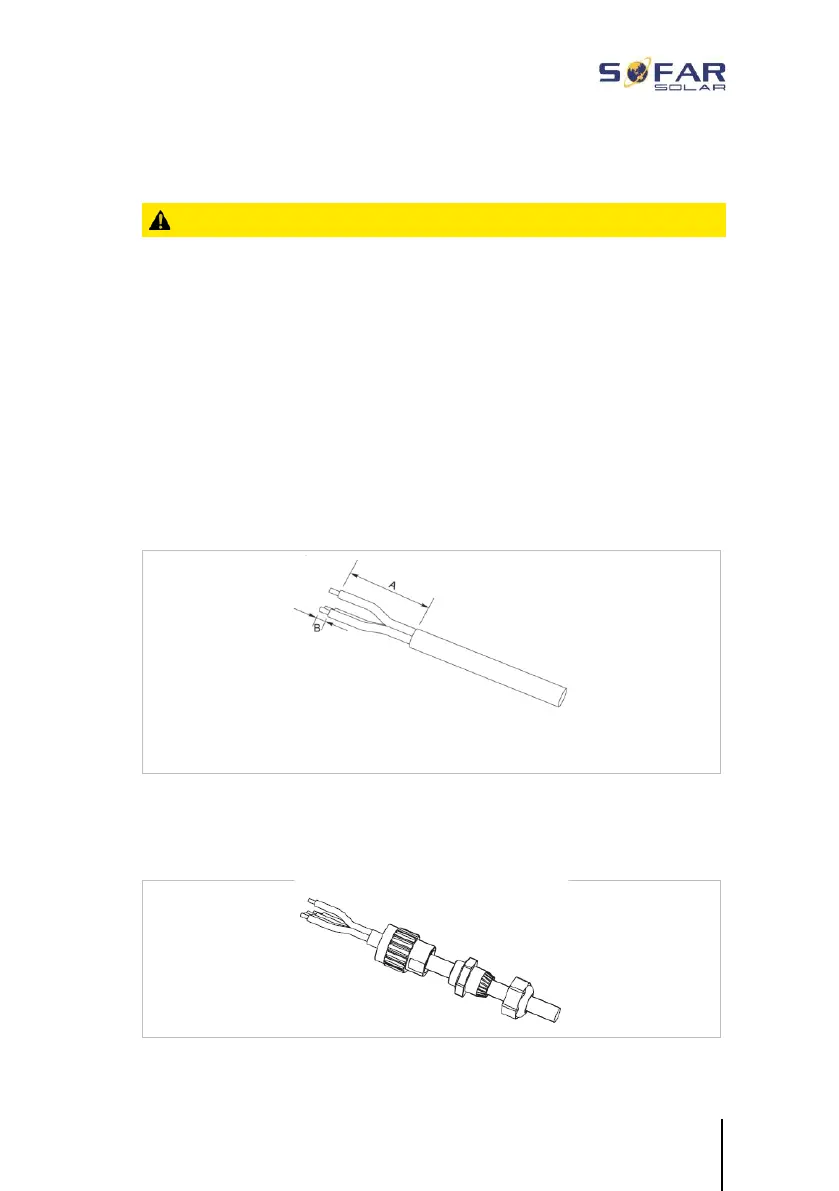

Remove the insulating layer of the AC output cable using a wire
stripper and in accordance with the following illustration:
A = 30 …50 mm
B = 3…5 mm
2. Disassemble the connector in accordance with the following
illustration. Guide the AC output cable through the cable gland.
