Sofarsolar HYD 10KTL-3PH - Page 64

ELECTRICAL CONNECTIONS
64 HYD 5K...20KTL-3PH

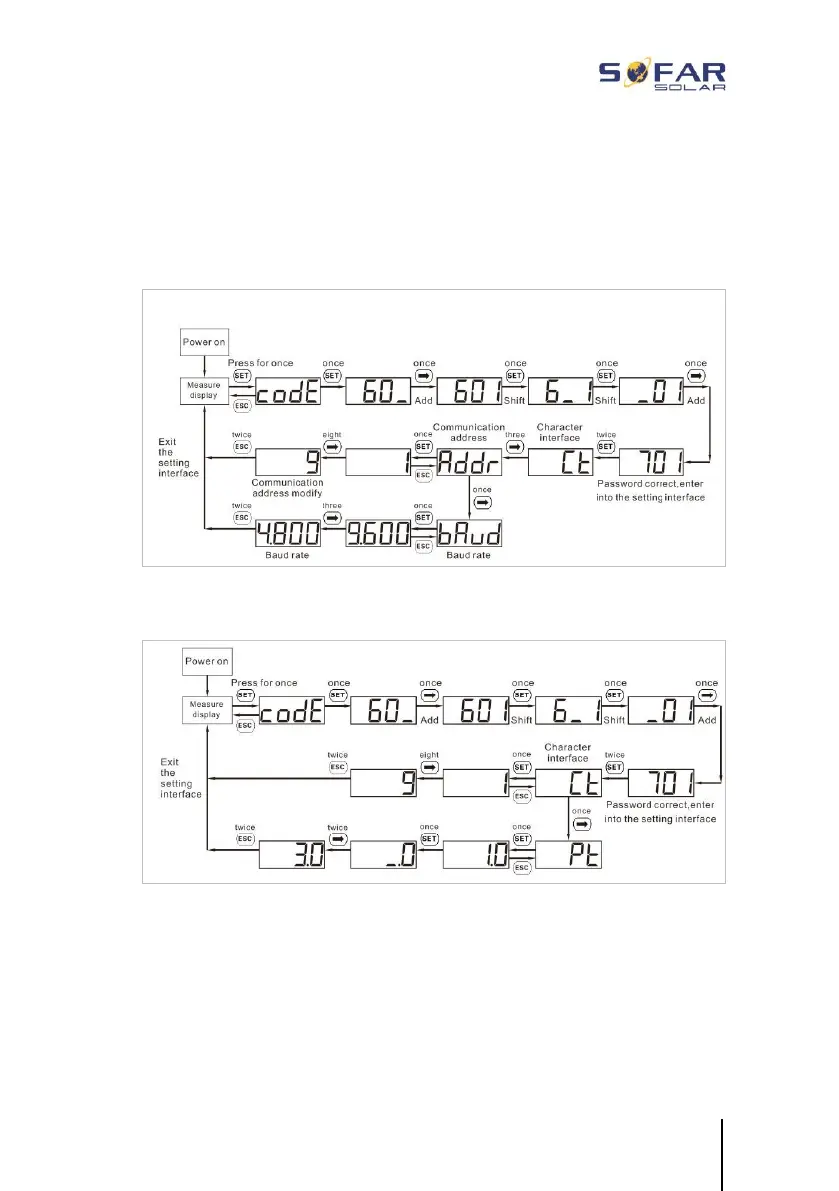

In case you want to change or check the settings, please refer to
below procedure:
Modbus Address and Baud Rate setting
Current Ratio setting
5.9.4 Temperature Sensor
For batteries without a BMS (for example lead-acid batteries), you
need to connect the temperature sensor which is within the scope of
supply. Place the sensor at the battery.
