ELECTRICAL CONNECTIONS
HYD 5K...20KTL-3PH 71

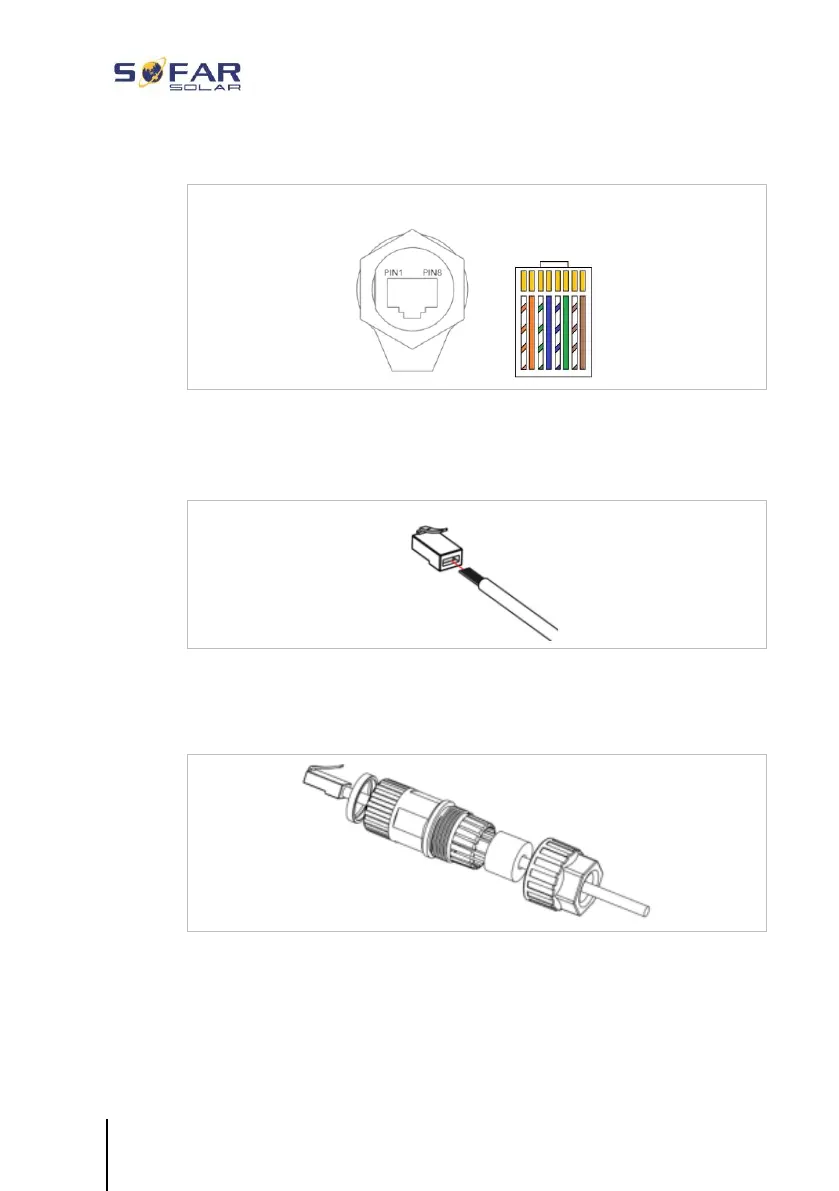

Please consider the following PIN assignment.
Connector inverter RJ45 Cable (clip is below)
Please follow below installation steps.
1. Press the wire terminals in colour sequence:
2. Route the cable terminal through the cable gland and insert the
communication cable into the RJ45 connector.
3. Lock the connector by turning clockwise:
