ELECTRICAL CONNECTIONS
44 SOFAR 3 ... 6KTLM-G3
5.6.1 AC connector installation instructions
CAUTION
Electrical voltage
• Ensure that the grid has been switched off before removing
the AC connector.

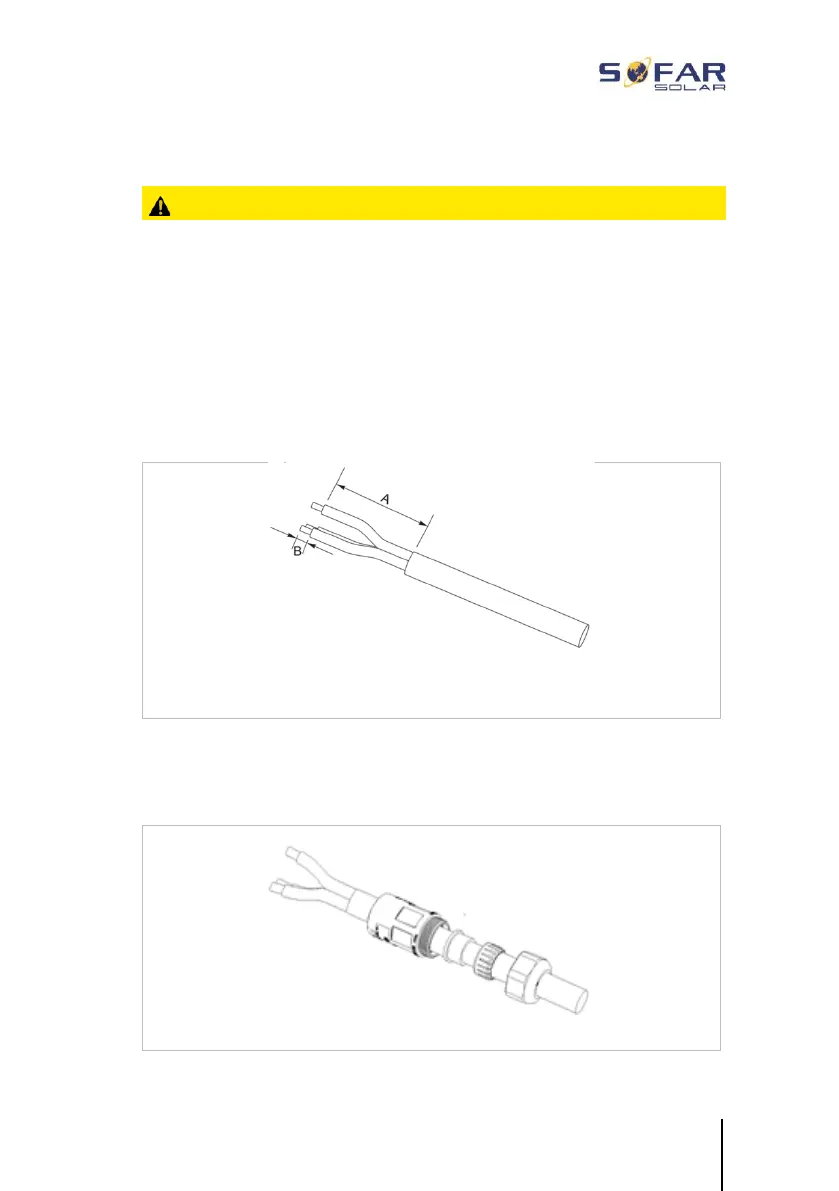

1. Select the suitable cable. Remove the insulating layer of the AC
output cable using a wire stripper and in accordance with the
following illustration:
A: 15 ... 25 mm B: 6 ... 8 mm
2. Disassemble the connector in accordance with the following
illustration: guide the AC output cable through the cable gland;
