SOFAR 60-80KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
Figure 4-7 Screws into the holes

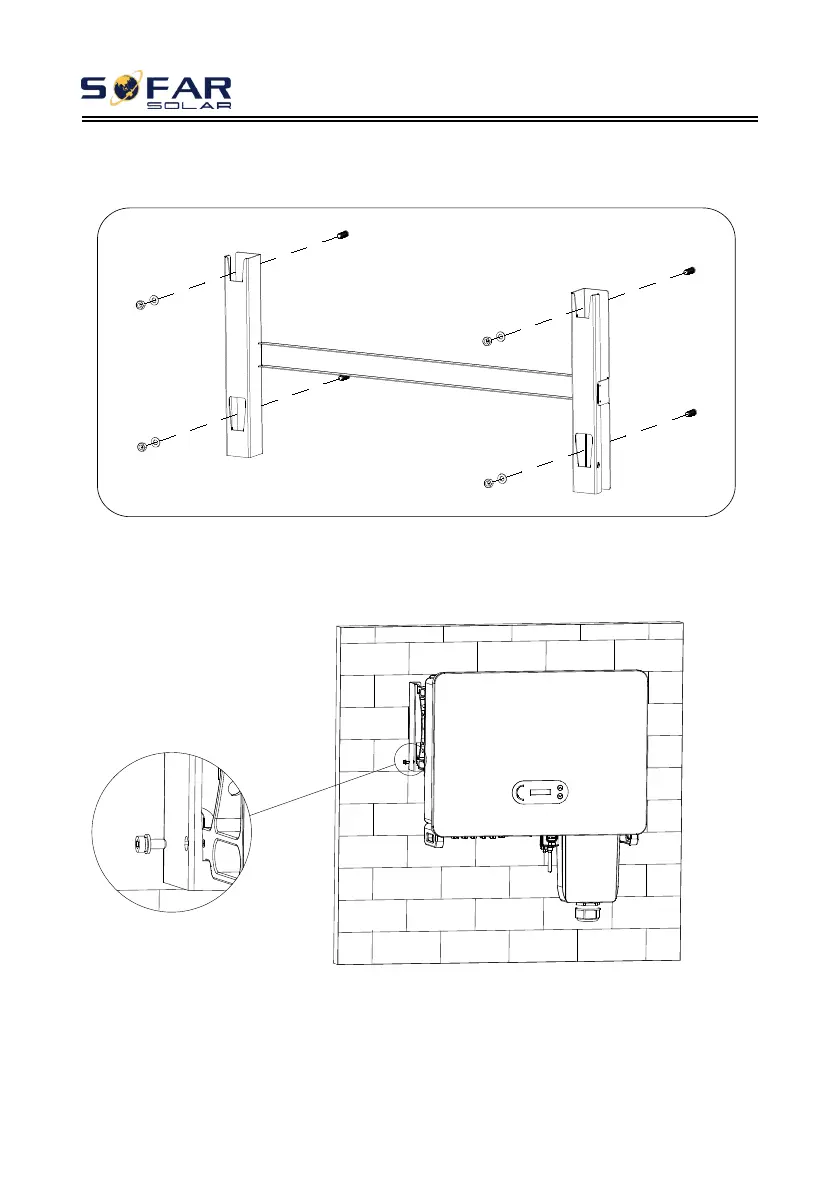

Step 3: Align the rear panel with the hole positions, fix the rear panels on the wall
by tightening the expansion bolt with the nuts
Figure 4-8 Install rear panel
Step 4: Lift the inverter and hang it on the rear panel,and fixing both side of
inverter with M6 screw.
Figure 4-9 Fix inverter
