SOFAR 60-80KTLX-G3 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd.
terminal block and customized AC output waterproof cover, which can meet the
IP65 level requirements after installation. AC cable need customer self connect:

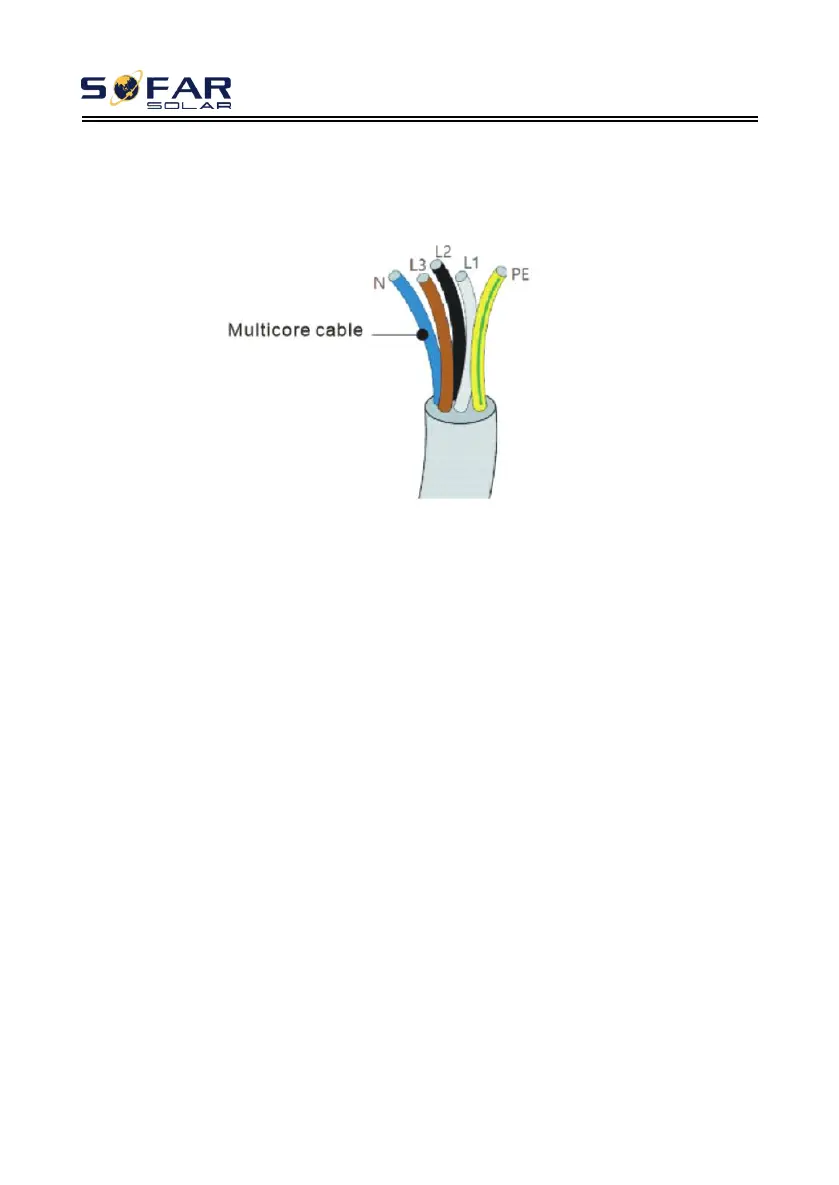

Figure 5-7 The equipment Multi-core Cable
Wiring Procedure as following:
Step 1: Remove the AC waterproof cover screw with a screwdriver, and take out
the stopper in the PG waterproof joint.
Step 2: Select the appropriate cable diameter according to table 5-1, process the
cable according to the following picture size requirements, and then pass through
PG waterproof joint; The PE wire is connected to the grounding position of the
container. External PE refer to Figure 5-4 Inverter external grounding instruction
diagram.
