ACM - Access Control Module(s)
13

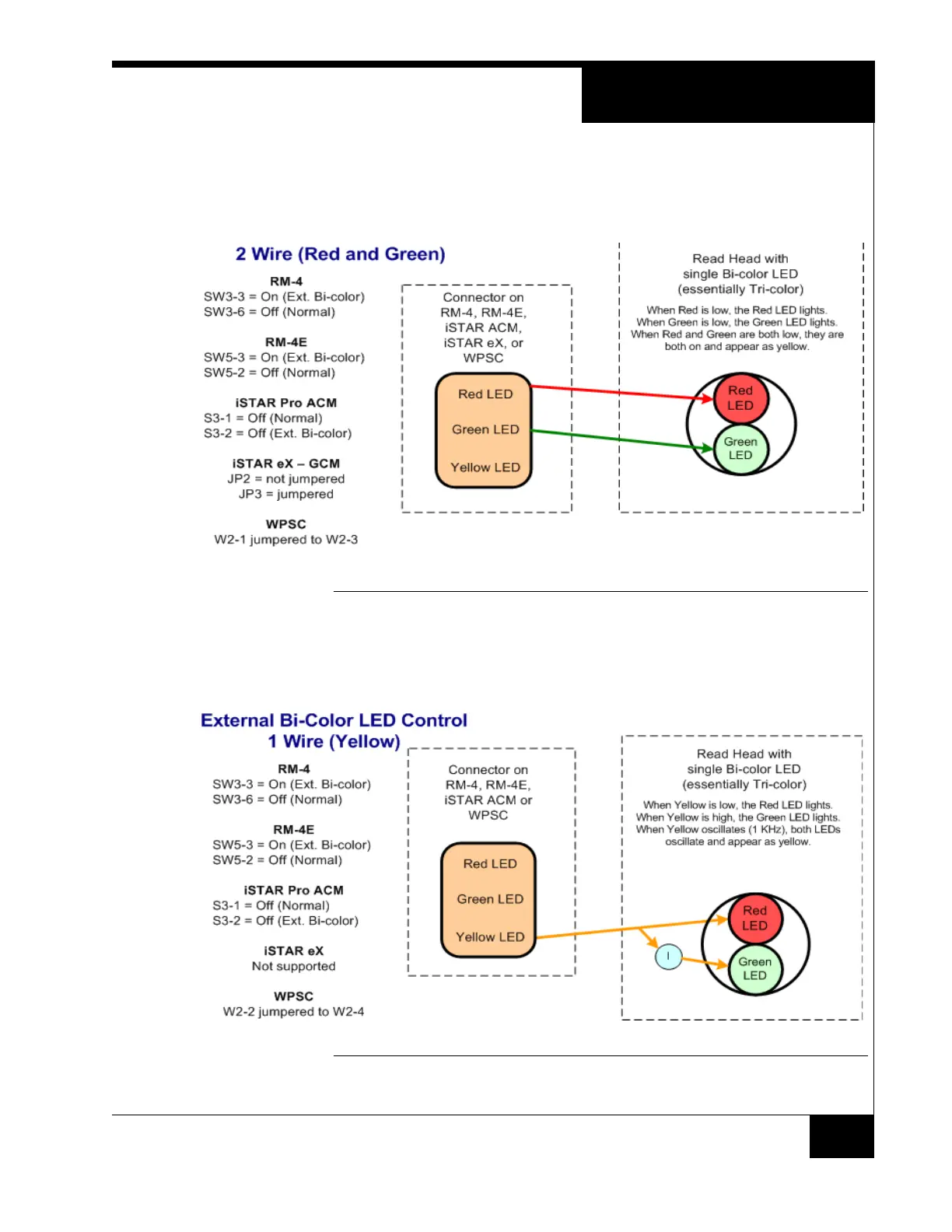

2 Wire (Red and Green)
There are two instances of External Bi-color; two wire and one wire. With two wire, the
Red and Green LED drives are wired as shown in Figure 6
FIGURE 6. External Bi-color (2 wire)
1 Wire (Yellow)
With one wire, the Yellow drive is wired as shown in Figure 7
FIGURE 7. External Bi-color (1 wire)
