Installing the Heater
(optional)
The readers require a heater kit (Model C130-915) when installed outdoors in an
environment where temperatures may drop below 40° F (5° C).
The Model C130-915 heater kit contains the following parts:
Part number C130-915A is supplied without a transformer. A UL Listed Class 2
transformer rated output 12 VAC, 40 VA is required for proper installation.

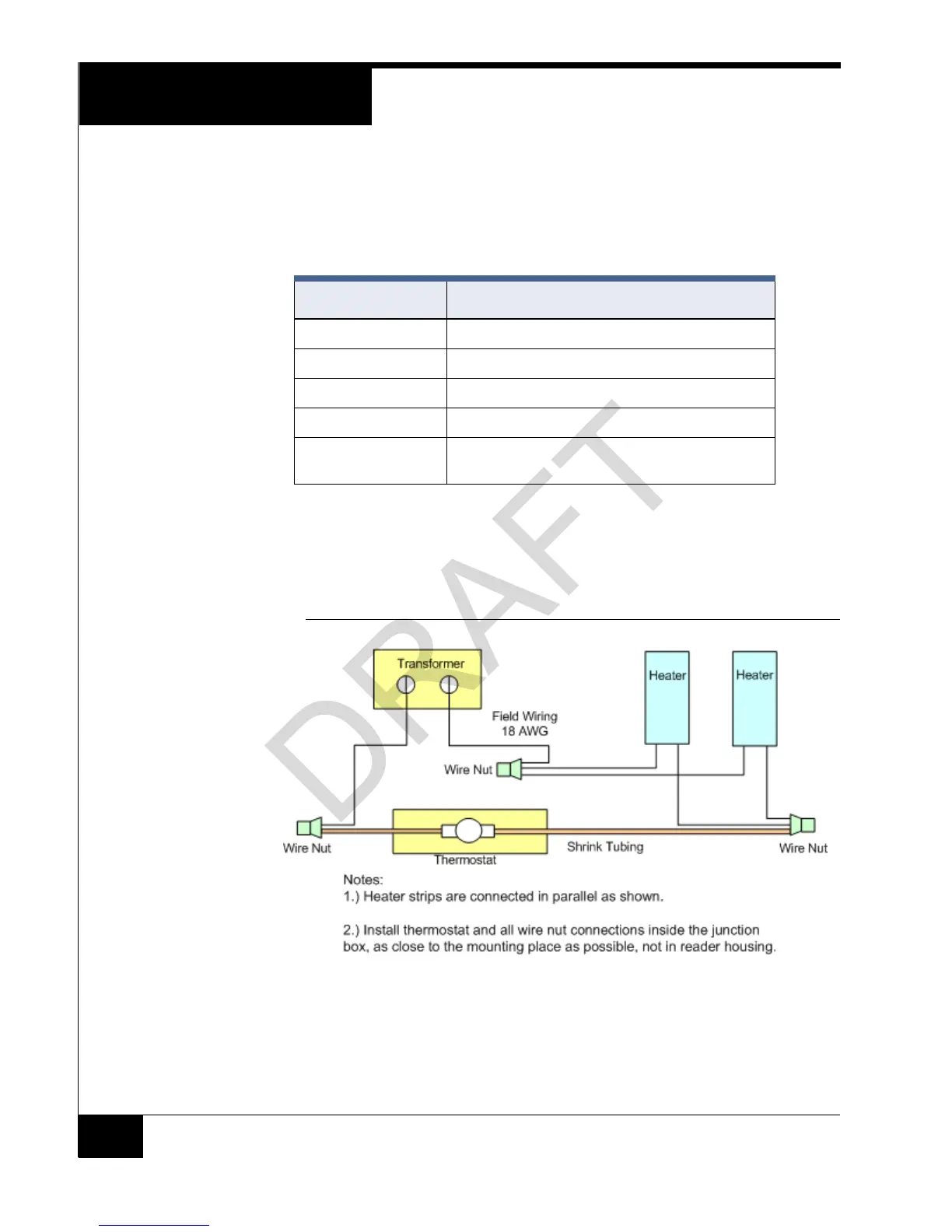

Figure 8 shows how to wire the RM heater kit.
FIGURE 8. RM Heater Kit Wiring
Figure 9 on page 13 shows the location of the heater strips and thermostat on the RM
mount plate.
TABLE 6. Heater Parts
Quantity Description
1 Transformer 12 VAC 40VA
2 Heater Strips
1 Thermostat (turns on at 40 ° F)
3 Wire nuts
2 6-32 x 1/4” screws to mount thermostat to RM
plate.
