Installation
6
INSTALLATION
To Install the Reader:
1. Install the reader mount plate.
2. Wire the components.
3. Connect and ground the cable shields on the reader bus.
(Refer to TAB 2010-15 “RM Reader ESD Protection Guidelines.”)
4. Set the reader address.
5. Install the ARM-1 relay boards (optional).
6. Install the heater kit (optional).
7. Mount the reader standard housing on the reader mount plate using the Software
House security screwdriver (Part number 132-183).
Install the RM Mount
Plate
Figure 2 shows the standard housing, mount plate, and gasket. The readers conform to
the same housing, mount plate, and gasket dimensions.

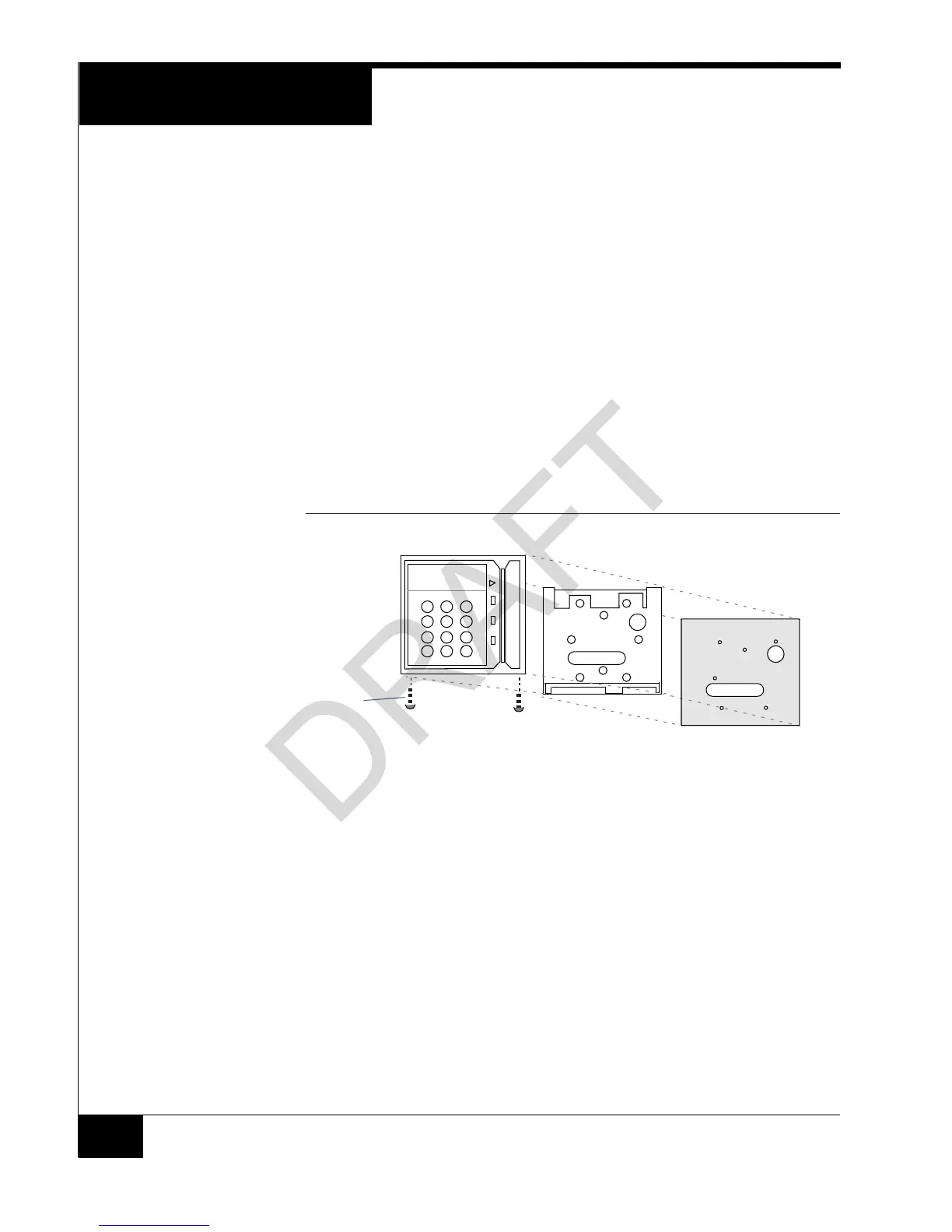

FIGURE 2. Standard Housing and Mount Plate
Figure 3 on page 7 shows the mount plate dimensions.
an
ar
ous
ng
Standard mount plate
Housing
screws
Gasket
Requires a security screwdriver
