RM2L-NH Setup
8
RM2L-NH Pre-wired Keypad Connections
The RM2-NH Keypad Arming Station is pre-wired, as shown in Figure 6.

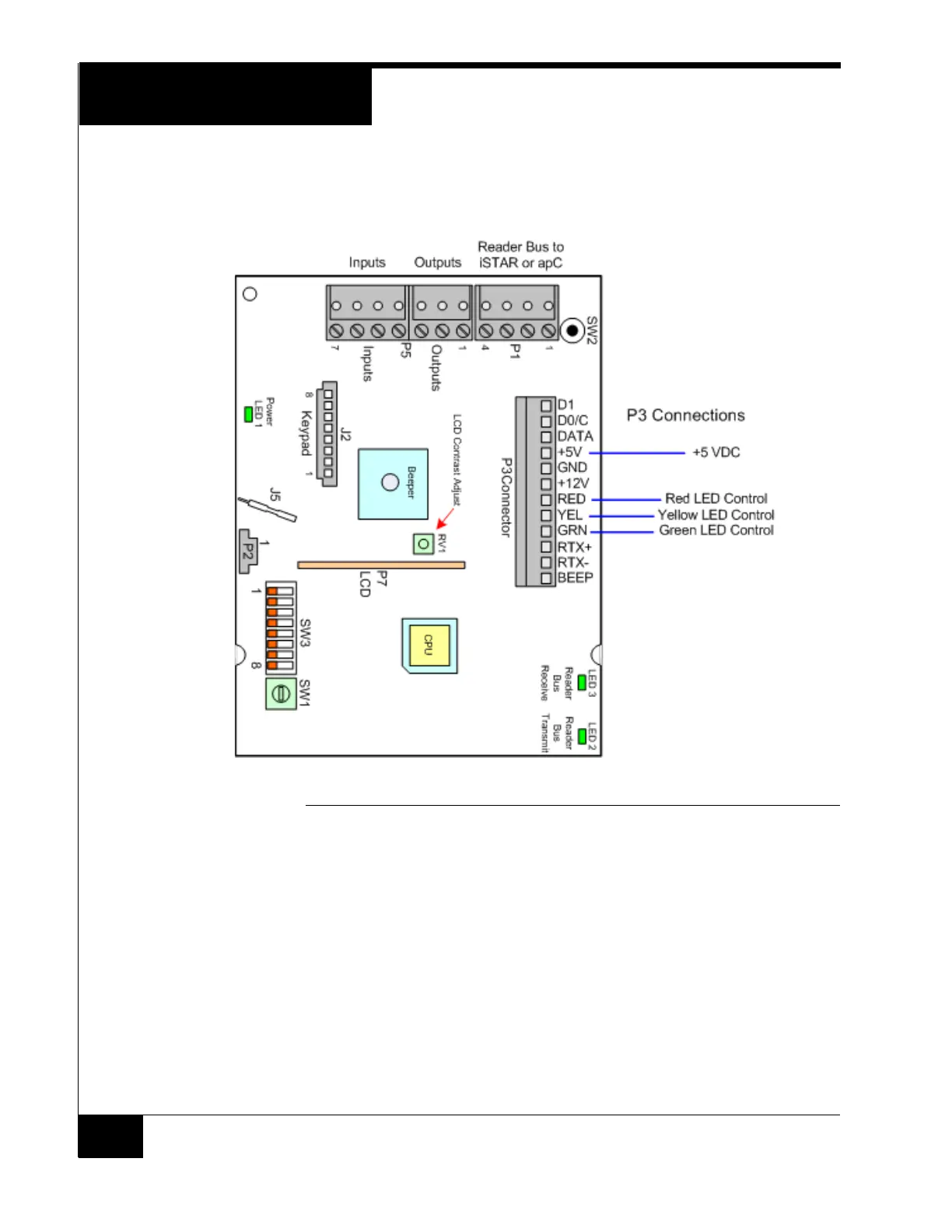

FIGURE 6. RM2L-NH Keypad Arming Station pre-Wired P3 Connections
