SolarEdge SE7600H-US User Manual

Chapter 1: Introducing the SolarEdge Power
Harvesting System
The SolarEdge power harvesting solution maximizes the power output from any type of
solar Photovoltaic (PV) installation while reducing the average cost per watt. The
following sections describe each of the system’s components.

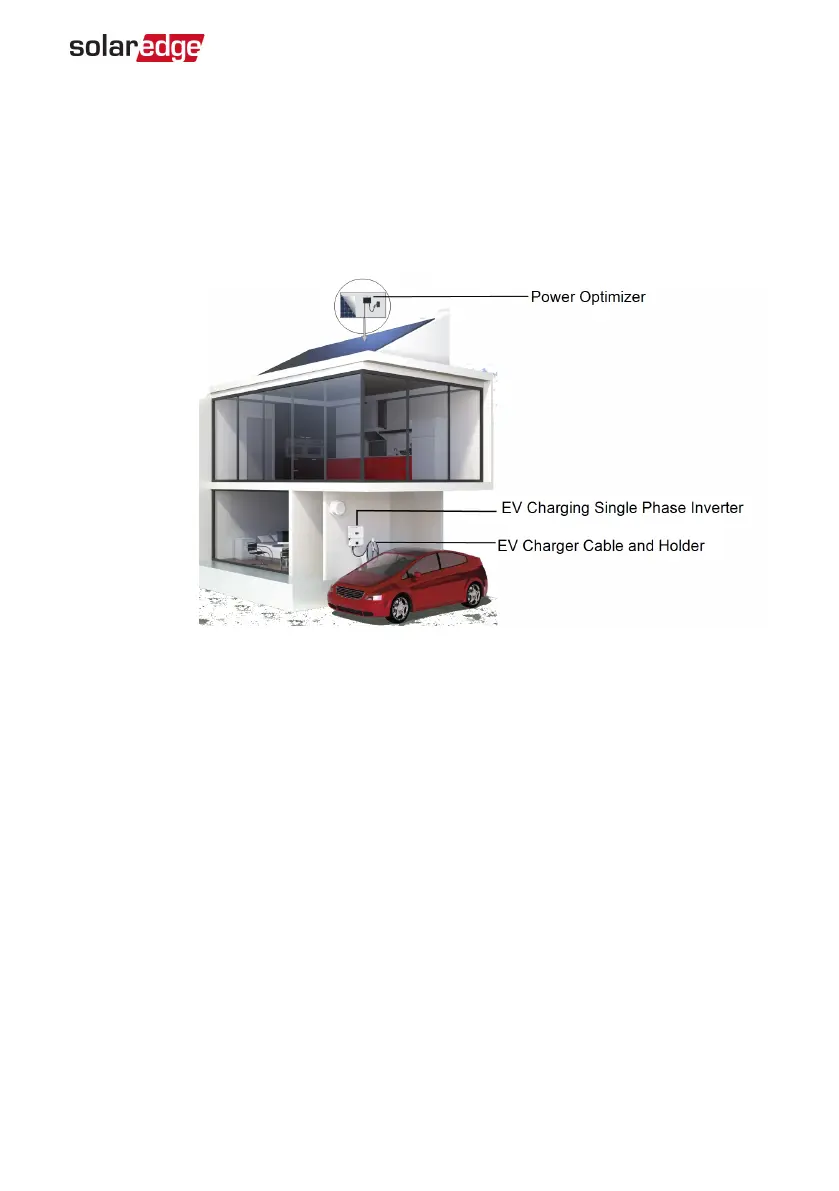

Figure 1: The SolarEdge power harvesting system components
Chapter 1: Introducing the SolarEdge Power Harvesting System 13
EV Charging Single Phase Inverter Guide MAN-01-00588-1.1

SolarEdge SE7600H-US Specifications

General

Model	SE7600H-US
AC Power Output	7600W
Max Efficiency	99%
Enclosure Rating	NEMA 4X
Nominal AC Voltage	240V
AC Voltage Range	211 - 264V
Max Output Current	32A
Max Inverter Efficiency	99%
Nighttime Power Consumption	<2.5W
MPPT Voltage Range	380 - 480V
Max Input Voltage	480V
Number of MPP Trackers	1
Cooling	Convection
Operating Temperature Range	-40°F to +140°F (-40°C to +60°C)
Communication Interfaces	RS485, Ethernet
Warranty	12 years
