SolarEdge SE7600H-US User Manual

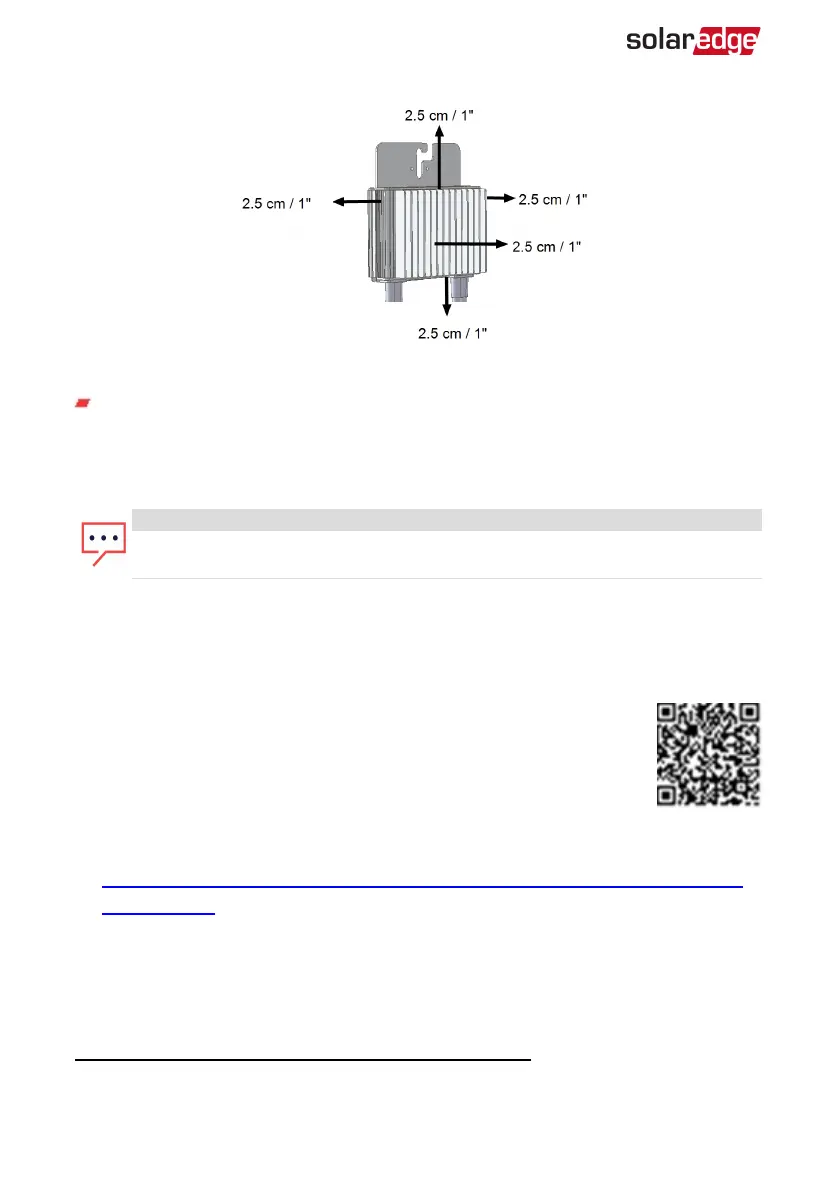

Figure 5: Power optimizer clearance
When installing modules in a confined space, for example, if installing Building-
integrated photovoltaic (BIPV) modules, ventilation measures may be needed to
ensure the power optimizers are not be exposed to temperatures outside their
specifications.
NOTE
The images contained herein are for illustrative purposes only and may vary
depending on product models.
Step 1: Mounting and Grounding the Power
Optimizers
For each of the power optimizers
(1)
:
1. Determine the power optimizer mounting location and use the power
optimizer mounting brackets to attach the power optimizer to the
support structure (See Figure 6 ). It is recommended to mount the
power optimizer in a location protected from direct sunlight. For
frame-mounted power optimizers follow the instructions supplied
with the optimizers, or refer to
https://www.solaredge.com/sites/default/files/installing_frame_mounted_power_
optimizers.pdf.
2.
If required, mark the mounting hole locations and drill the hole.
(1)
Not applicable to smart modules.
EV Charging Single Phase Inverter Guide MAN-01-00588-1.1
24 Step 1: Mounting and Grounding the Power Optimizers

SolarEdge SE7600H-US Specifications

General

Model	SE7600H-US
AC Power Output	7600W
Max Efficiency	99%
Enclosure Rating	NEMA 4X
Nominal AC Voltage	240V
AC Voltage Range	211 - 264V
Max Output Current	32A
Max Inverter Efficiency	99%
Nighttime Power Consumption	<2.5W
MPPT Voltage Range	380 - 480V
Max Input Voltage	480V
Number of MPP Trackers	1
Cooling	Convection
Operating Temperature Range	-40°F to +140°F (-40°C to +60°C)
Communication Interfaces	RS485, Ethernet
Warranty	12 years
