Solarus MediaShower - Set-Top Box Rear Connections

7
MediaShower TV

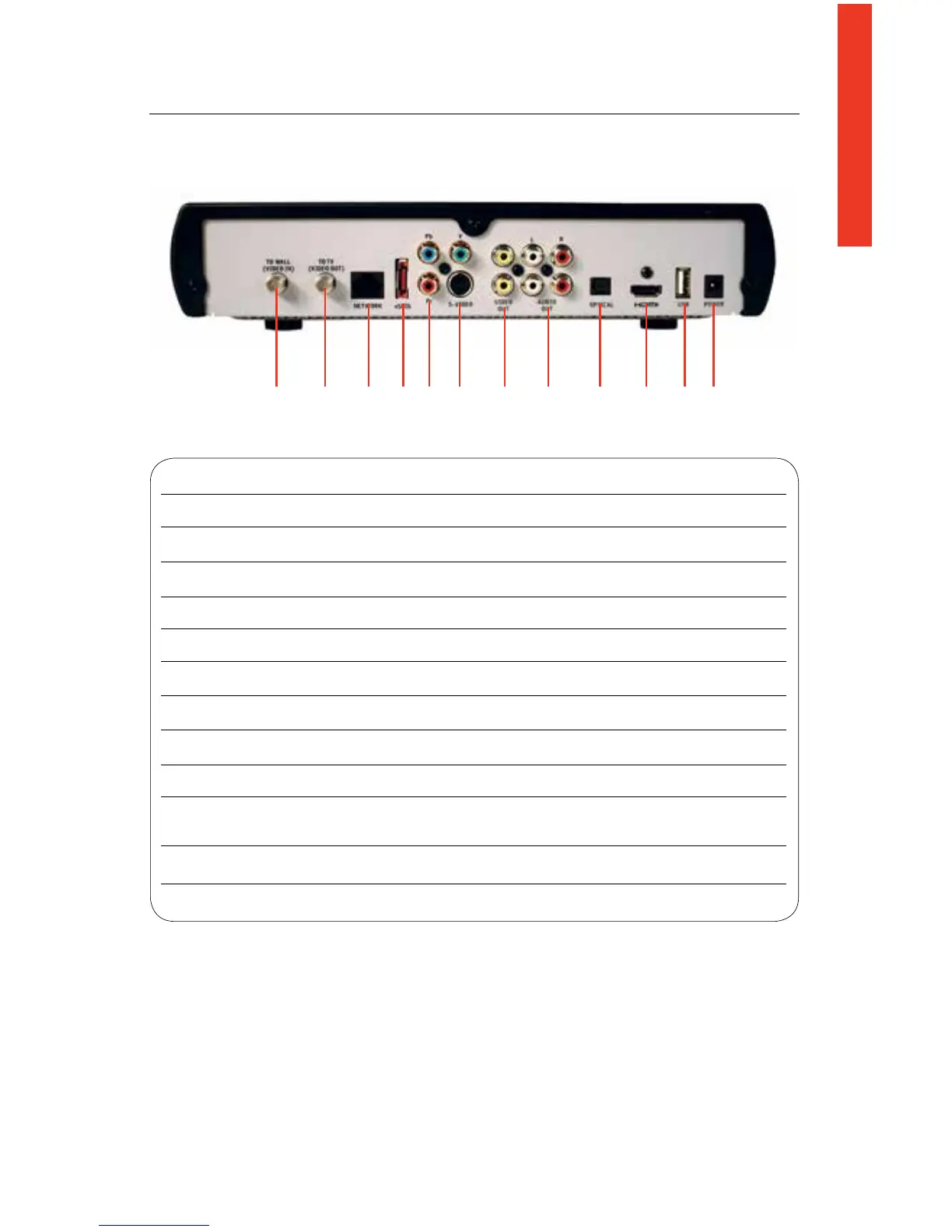

Rear Panel
Item Description Function
 1 ToWall(VideoIn) Coaxinputforhomevideonetwork
 2 ToTV(VideoOut) CoaxoutputforTVorVCR
 3 Network EthernetPort
4 eSATA eSATA connector not currently supported, reserved for future use
 5 YPBPR ComponentstoconnectvideooutputtoanHDTV
 6 S-Video VideooutputforVCRorTVwithS-Videoconnections
 7 VideoOut RCAoutputtoconnecttoTV,VCR,DVDrecorderorotherdevice
 8 AudioOutLandR LeftandRightRCAstereoaudiooutput
9 Optical S/PDIF audio output to a digital home theater receiver menu
 10 HDMI Inputforhigh-denitionTVorhometheaterreceiver
with HDMI connection
 11 USB USB2.0connector,notcurrentlysupported,reservedforfutureuse
12 Power +12V DC DC power adaptor connection
1 113 5 6 9 102 7 8 124
