3 Product Introduction
3.1 Product Overview
For safety reasons, installers are responsible for familiarizing themselves with the
contents of this manual and all warnings before performing installation.

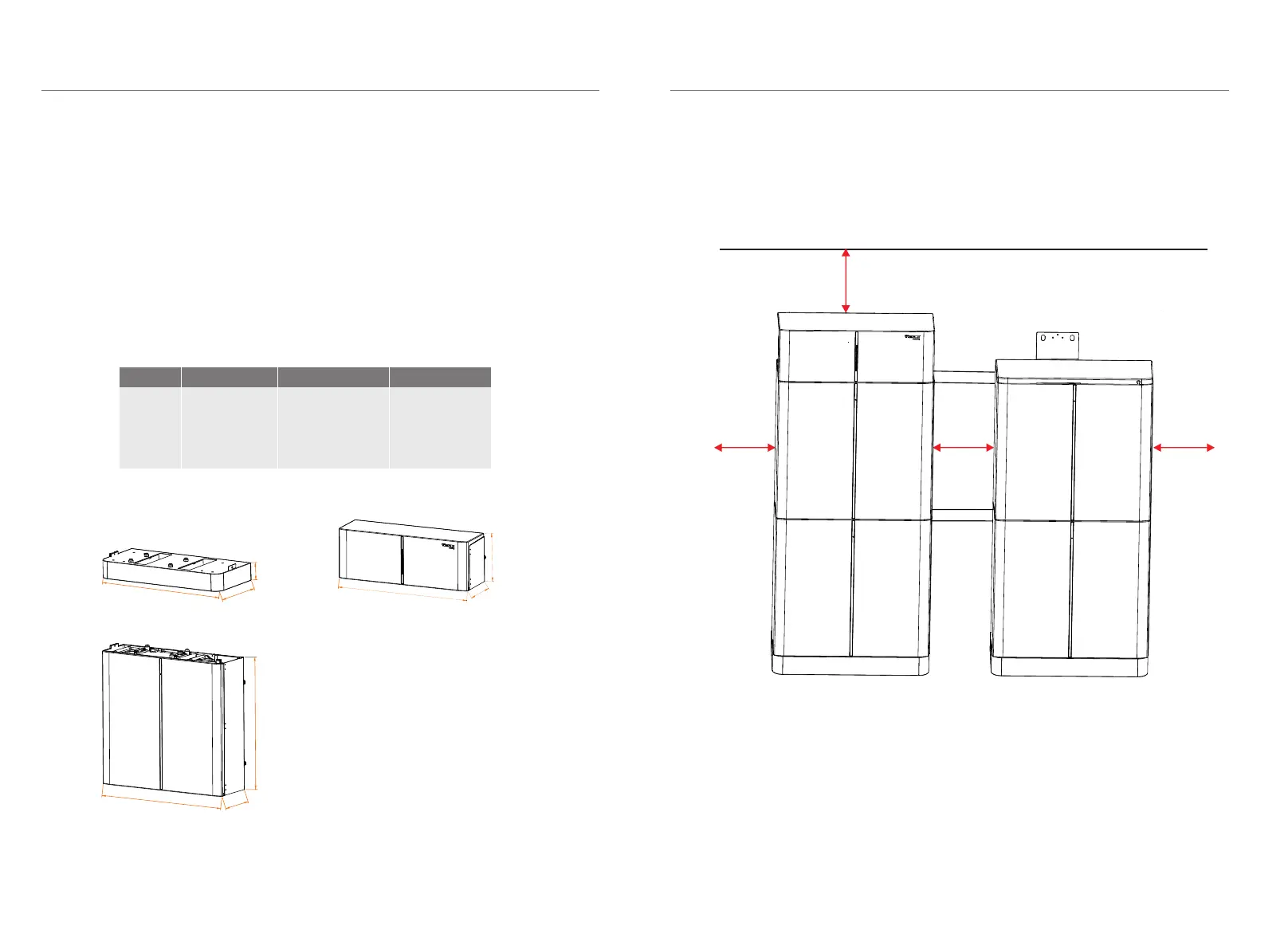

3.1.1 Dimensions and Weight
A battery management system (BMS) is an electronic system that manages a
rechargeable battery.
A battery module is a type of electrical battery which can be charged or
discharged into a load.
A battery system includes theBMS and battery module(s).
BMS
(MC0600)
Battery Module
(HV10230)
Base M ounting
3. Product Introduction
Length
Width
Height
Weight
BaseMounting
482mm
167mm
71mm
2.5KG
482.5mm
173.5mm
153mm
7.5KG
482.5mm
471.5mm
153mm
34.5KG
MC0600 HV10230
48
2
.5mm
1
5
3 mm
173
.5
mm
4
8
2
.
5m
m
153 m
m
4
7
1
.
5
m
m
3.1.2
Installation Space
≥300mm
≥300mm ≥300mm
(200,250)
mm
4
8
2m
m
16
7 m
m
71
m
