3 Introduction
3.1 Basic Features
Congratulations on your purchase of a ZDNY Series inverter from SolaX.The
ZDNY inverter is one of the finest inverter on the market today,incorporating
state-of-the-art technology,high reliability,and convenient control features.
• Advanced DSP control technology.
• Utilize the latest high-efficiency power component.
• Optimal MPPT technology.
- Two indepdent MPP Tracking.
- Wide MPPT input range.
• Advaned anti-islanding solutions.
• Anti-theft protection.
• IP65 protection level.
• Max.efficiency up to 98.2%.EU efficiency up to 97.6%.
• THD<3%.
• Safety &Reliability:transformerless design with software and hardware
protection.
• Export control.
• Power factor regulation.
• Friendly HMI.
- LED status indications
- LCD display technical data,Human-machine interaction through press key.
- RS485/RS232,dry contact communication interface.
- PC remote control.

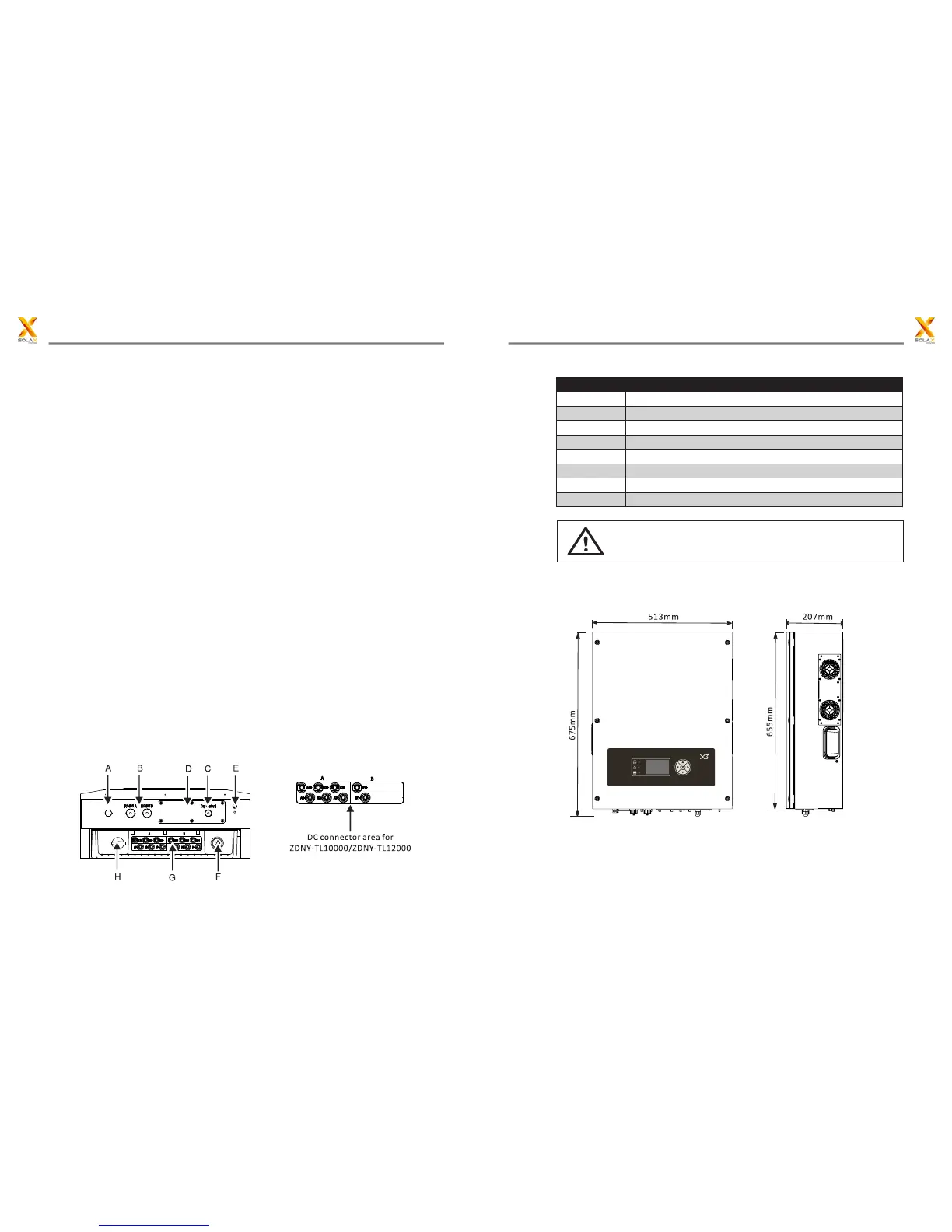

3.2 Terminals of PV inverter
Object
Description
A
Valve for releasing the air.
B Cables opening for RS485 connection
C Cable opening for dry contact.
D Communication lid.(Open the lid to set the RS232.)
E Ground terminal for additional grounding the inverter.
F AC connector
G DC connector area.(ZDNY-TL15000/17000/20000)
H DC switch
Only qualified electricians can operate the connection.
WARNING!
3.3 Dimensions
3.4 Identication of ZDNY
You can identify the DZNY Series inverter using the name plate in the right
side of the inverter.
