Solax X3-Hybrid User Manual

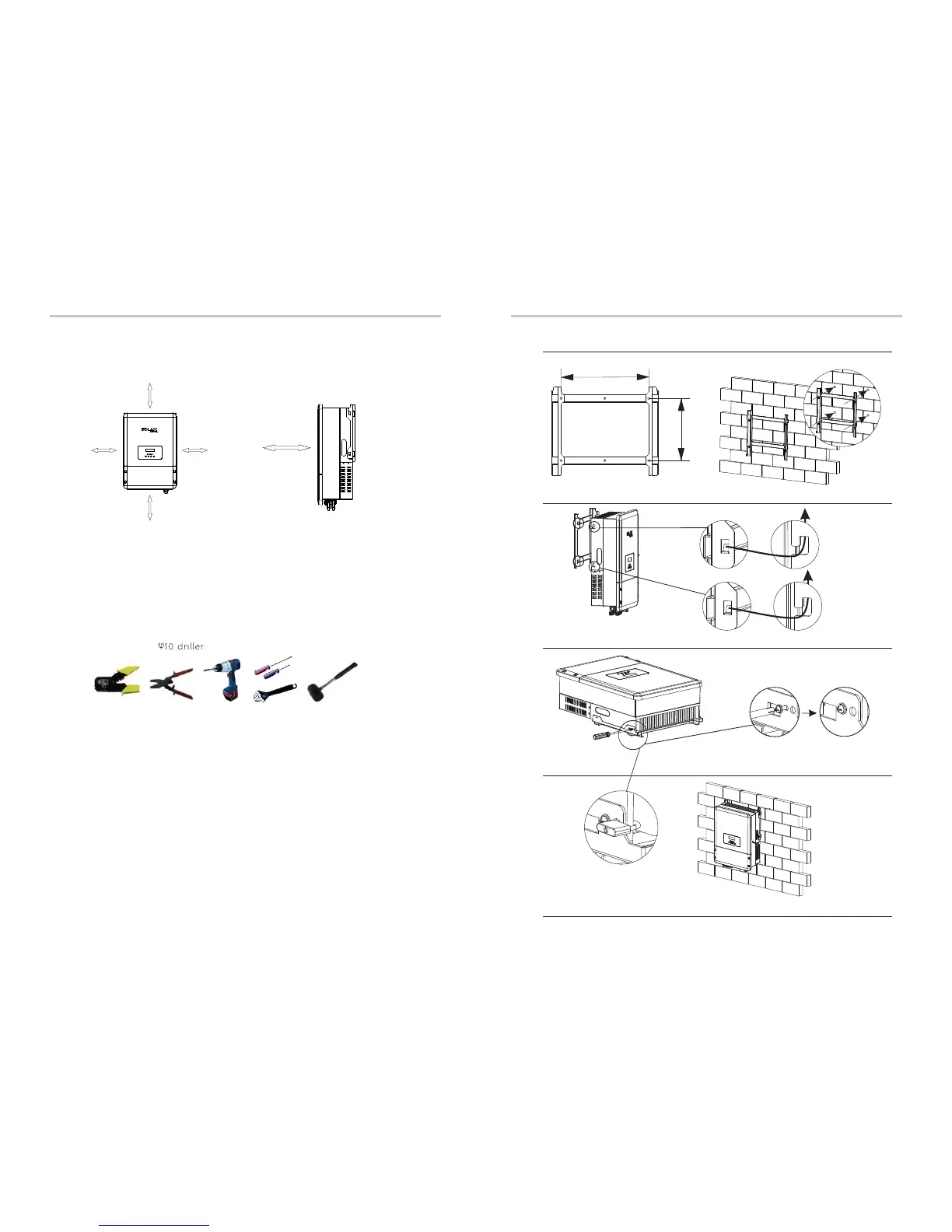

Space Requirement
Ø
Installation Installation
Mounting Steps
Ø
Step 1: Screw the wall bracket on the wall
Tools required for installation.
1.1 Place the bracket on the wall and mark down the position of the 6 holes.
1.2 Drill holes with driller, make sure the holes are deep enough (at least 60mm) to
support the inverter.
1.3 Install the expansion tubes in the holes, and tighten them. Then install the wall
bracket with the expansion screws.
Installation tools : crimping pliers for binding post and RJ 45, screwdriver,
manual wrench and
Step 1
Step 2
Overview of Mounting
Step 2: Place the inverter on the wall mounted bracket by holding the handle on
the side.
20 21
Step 4
Step 3: Screw the set screw on the right-top of inverter tightly.
Step 4: If necessary, costomer can install an anti-theft lock on the right-top of the
inverter.
300mm
300mm
300mm300mm 500mm
Step 3
36
9 mm
260 mm

Solax X3-Hybrid Specifications

General

Max. PV Input Voltage	1000 V
IP Protection	IP65
Max. DC Input Voltage	1000 V
Rated Grid Voltage	230 V / 400 V
Grid Frequency	50 Hz / 60 Hz
THD	<3%
Efficiency	97.6%
Power Factor	>0.99
Operating Temperature	-25°C to +60°C
Communication	WiFi, RS485, Ethernet
