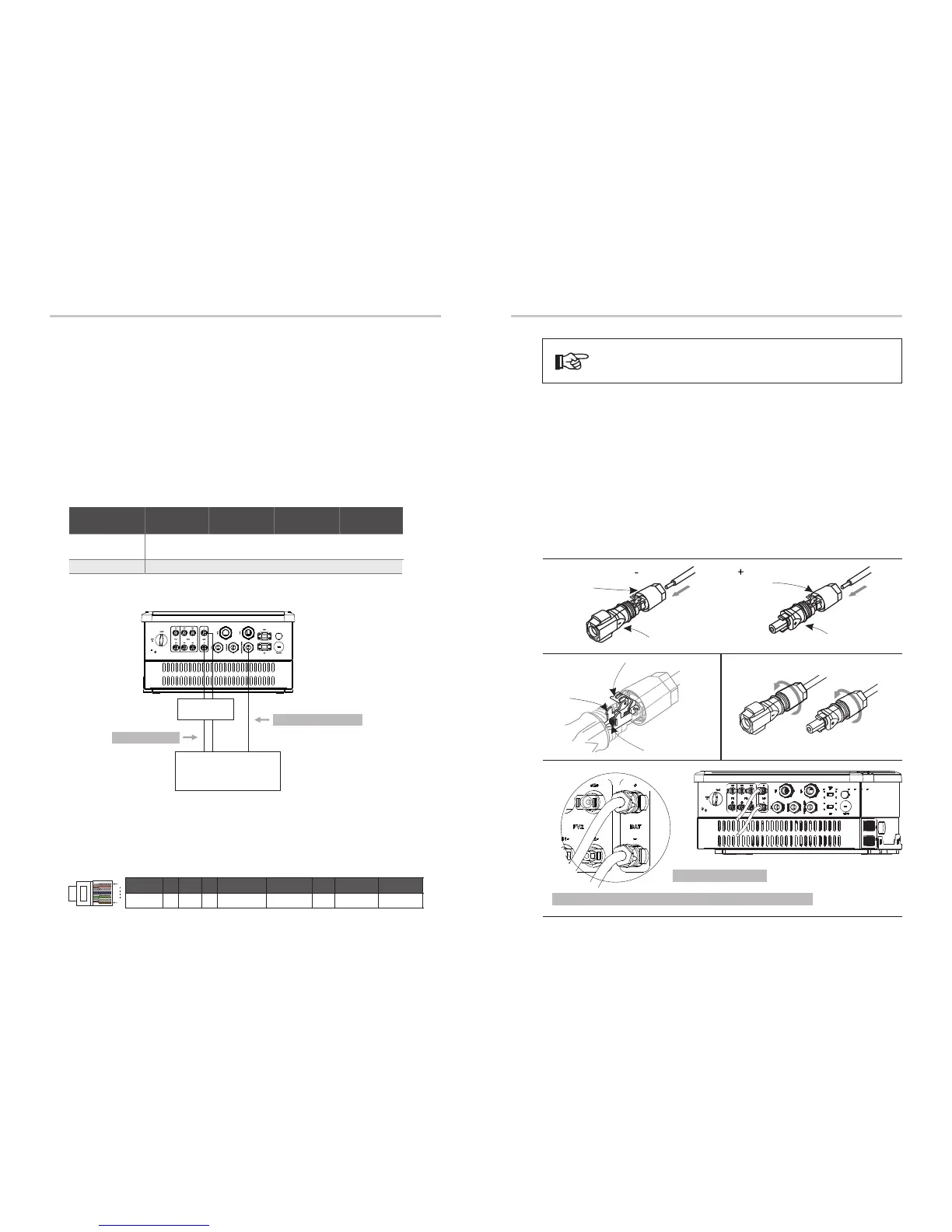

6.4 Battery Connection
Charging & discharging system of X3-Hybrid series inverter is designed for
high-voltage lithium battery.
Before choosing battery, please note the maximum voltage of battery can not
exceed 500V and the rated voltage of battery can not exceed 400V, and the
battery communication should be compatible with X3-Hybrid inverter.
.
Before connecting to battey, please install a nonpolarized DC breaker to make sure
inverter can be securely disconnected during maintanance.
Battery breakerØ
Voltage
Current[A]
32A
Model
X3-Hybrid-5.0-D
X3-Hybrid-5.0-N
X3-Hybrid-6.0-D
X3-Hybrid-6.0-N
X3-Hybrid-8.0-D
X3-Hybrid-8.0-N
X3-Hybrid-10.0-D
X3-Hybrid-10.0-N
Nominal voltage of DC breaker should be larger than maximum
voltage of battery.
Battery connection diagramØ
Power Connection Steps:
Ø
Step2. Insert the stripped cable up to the stop ( negative cable for DC plug(-) and
positive cable for DC socket(+) are live). Hold the housing on the screw
connection.
Step3. Press down spring until it clicks audibly into place.(it must be possible to
see the fine wire strands in the chamber)
Step1. Choose the 9 AWG wire and strip the cable to 15mm.
Communication interface bewteen inverter and battery is CAN with a RJ45
connector.
BMS PIN DefinitionØ
Note！
The battery communication can only work when the battery BMS is
compatible with the inverter.
Step4. Tighten the screw connection(tighten torque:2.0Nm)
Electrical ConnectionElectrical Connection
Step5. Plug the PV conntector into the corresponding PV connector on inverter.
30
31
high-voltage lithium battery.
+
-
CAN
Nonpolarized
DC breaker
Power connection
Communication connection
BMS_CANH
GND
BMS_485A BMS_485B
GNDX X
BMS_CANL
Definition
2
3 4
5
6 7 81
PIN
1
8
DC plug housing(-)
DC socket housing(+)
screw connection
screw connection
spring
chamber
wire strands
Note: BAT port, not PV port!
Note: The positive line and negative line are not allowed to access anti-Line.
Step2.
Step3. Step 4.
Step5.
