5. Installation
5.1 Check for Physical Damage
5.2 Packing List
Make sure the inverter is intact during transportation. If there is any visible
damage, such as cracks, please contact your dealer immediately.

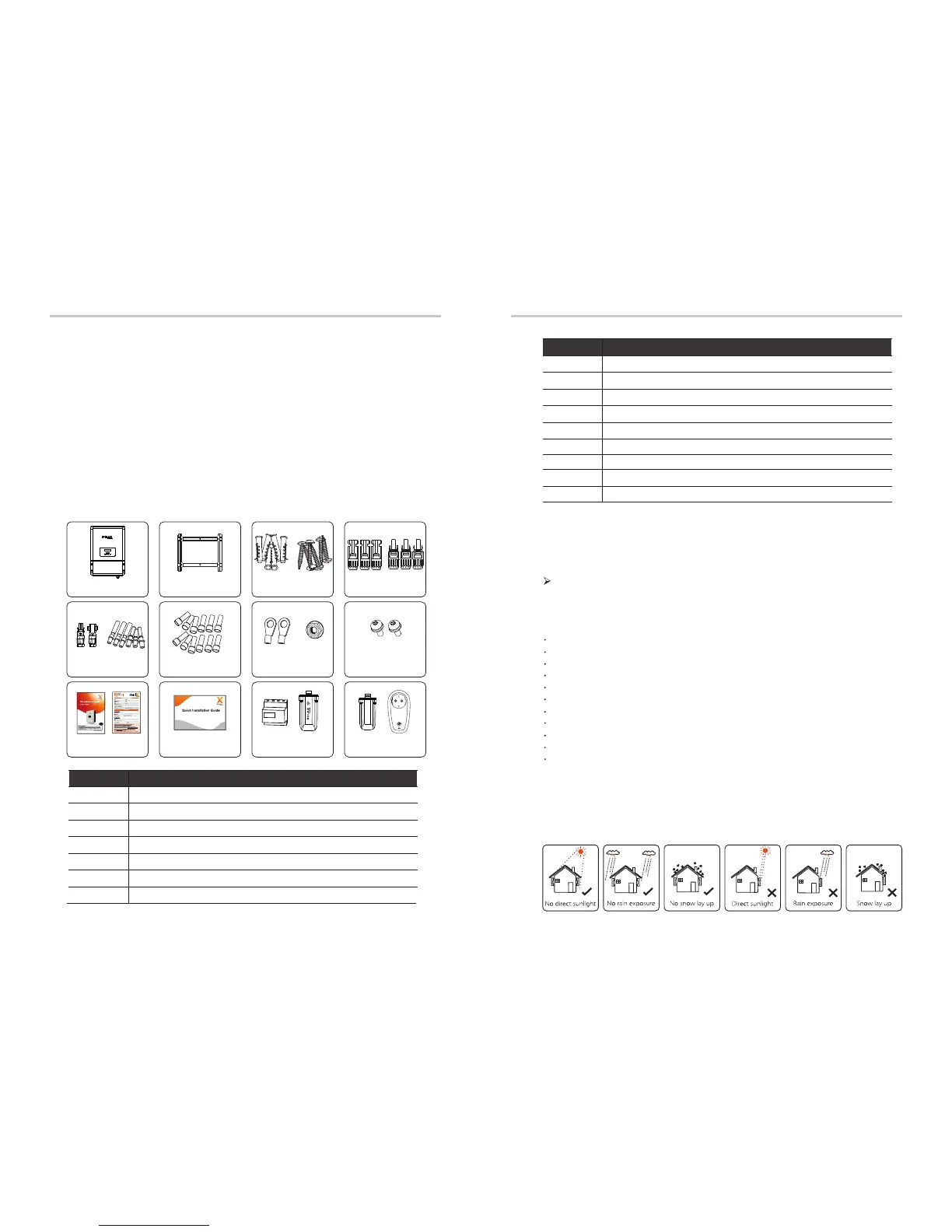

Open the package and take out the product, please check the accessories first.
The packing list shown as below.
Installation Installation
Object
A
B
C
D
E
F
Inverter
Bracket
Expansion tubes & Expansion screws (6/6)
PV connectors (3*positive, 3*negative)
Battery connectors (1*positive, 1*negative)
PV pin connectors (3*positive, 3*negative)
Description
G
Installation Precaution
X3-Hybrid Series inverter is designed for outdoor installation (IP 65).
Make sure the installation site meets the following conditions:
Not in direct sunlight.
Not in areas where highly flammable materials are stored.
Not in potential explosive areas.
Not in the cool air directly.
Not near the television antenna or antenna cable.
Not higher than altitude of about 2000m above sea level.
Not in environment of precipitation or humidity (＞95%).
Under good ventilation condition.
The ambient temperature in the range of -20℃ to +60℃.
The slope of the wall should be within ±5°.
The wall hanging the inverter should meet conditions below:
1.solid brick/concrete, or strength equivalent mounting surface;
2.Inverter must be supported or strengthened if the wall’s strength isn’t
enough(such as wooden wall, the wall covered by thick layer of decoration)
Please AVOIDE direct sunlight, rain exposure, snow laying up during installation
and operation.
5.3 Mounting
18
19
AC terminals/EPS terminals (optional)/Earth terminals (12)
A
B C D
E F G H
N O
I
19
J
K
X3-H ybri d 5kW-1 0kW
Object
H
I
J
K
L
Ring terminal (for grounding) (2)
User manual
Quick installation guide
Description
M
Warranty card
Set screw (2)
Grounding nut
N
O
Three-phase meter
Smart Plug (optional)
P
Wifi module (optional)
L
P
M
To Next Page
