Solax X3-Hybrid User Manual

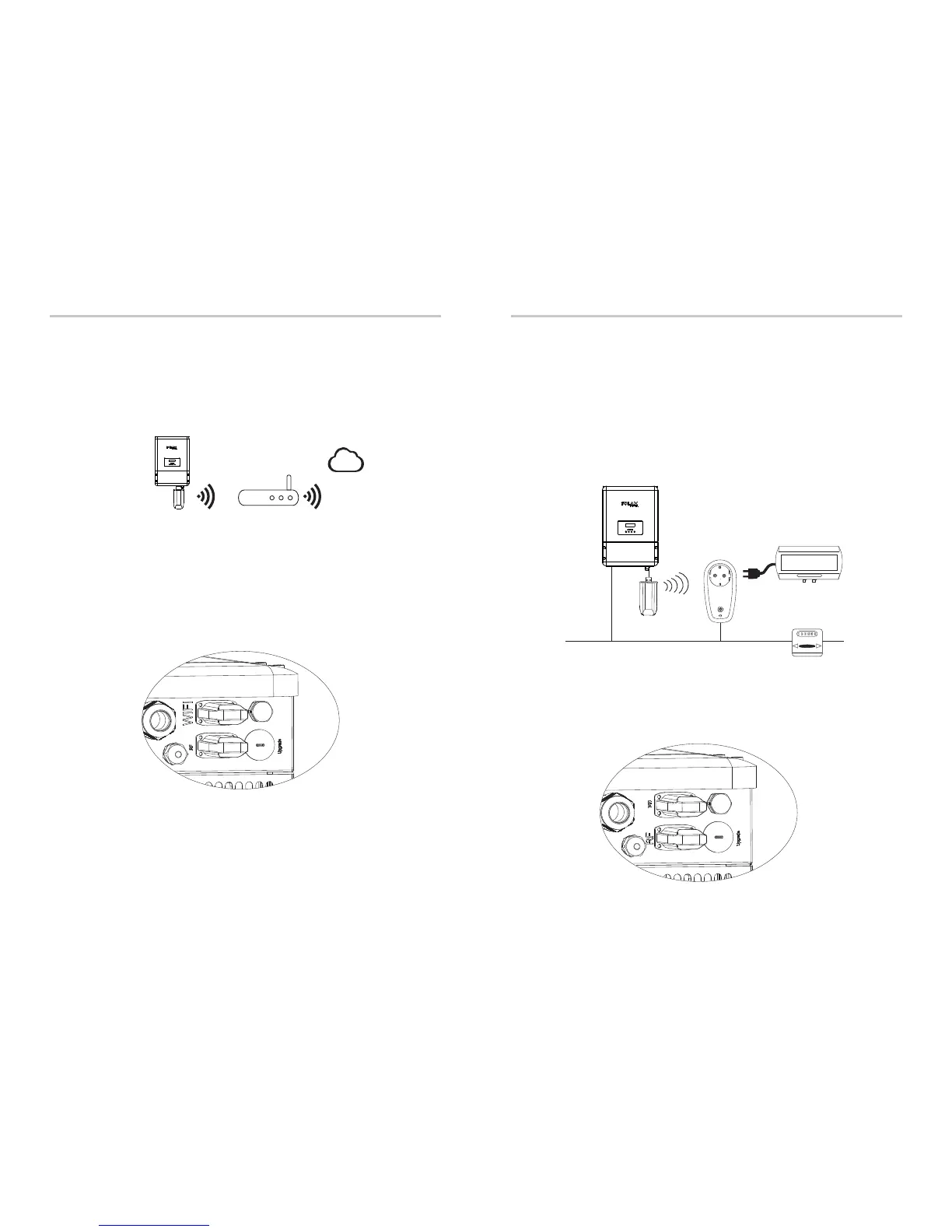

6.9 WiFi Connection(optional)
Inverter provides a WiFi port which can collect data from inverter and transmit it to
monitoring-website via a Pocket WiFi.(Purchase the product from supplier if needed)
Ø
Diagram
Could
Router
WiFi Connection Steps:
Ø
Step3. Create an user account online.( Please check the Pocket WiFi user
manual for more details.)
Step1. Plug Pocket Wifi into “WiFi” port at the bottom of the inverter.
Step2. Build the connection between the inverter and router.
6.10 RF Connection(optional)
X3-Hybrid inverter provides a RF( radio frequency) interface which control the
switch time of a designated load via an exteral Smart Plug (purchase the product
from supplier if needed.) so that the load mostly consumes PV energy and incurs
the lowest-possible energy costs during operation.
RF Connection Steps:
Ø
Grid
Meter
AC
emitter
receiver
designated load
Ø
Diagram
Please refer to the Smart Plug user manual for detailed connection steps.
Electrical ConnectionElectrical Connection
38 39

Solax X3-Hybrid Specifications

General

Max. PV Input Voltage	1000 V
IP Protection	IP65
Max. DC Input Voltage	1000 V
Rated Grid Voltage	230 V / 400 V
Grid Frequency	50 Hz / 60 Hz
THD	<3%
Efficiency	97.6%
Power Factor	>0.99
Operating Temperature	-25°C to +60°C
Communication	WiFi, RS485, Ethernet
