E95 ASSEMBLY
INSTRUCTIONS
PRE-ASSEMBLY
1. Using a razor knife (Box Cutter) cut the outside, bottom, and edge of the box along the dotted line.
Lift the Box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect for any damage or missing parts. If damaged
parts are found, or parts are missing, contact your dealer immediately.
3. Locate the hardware package. Remove the tools first. Remove the hardware for each step as needed
to avoid confusion. The numbers in the instructions that are in parenthesis (#) are the item numbers
from the assembly drawing for reference.

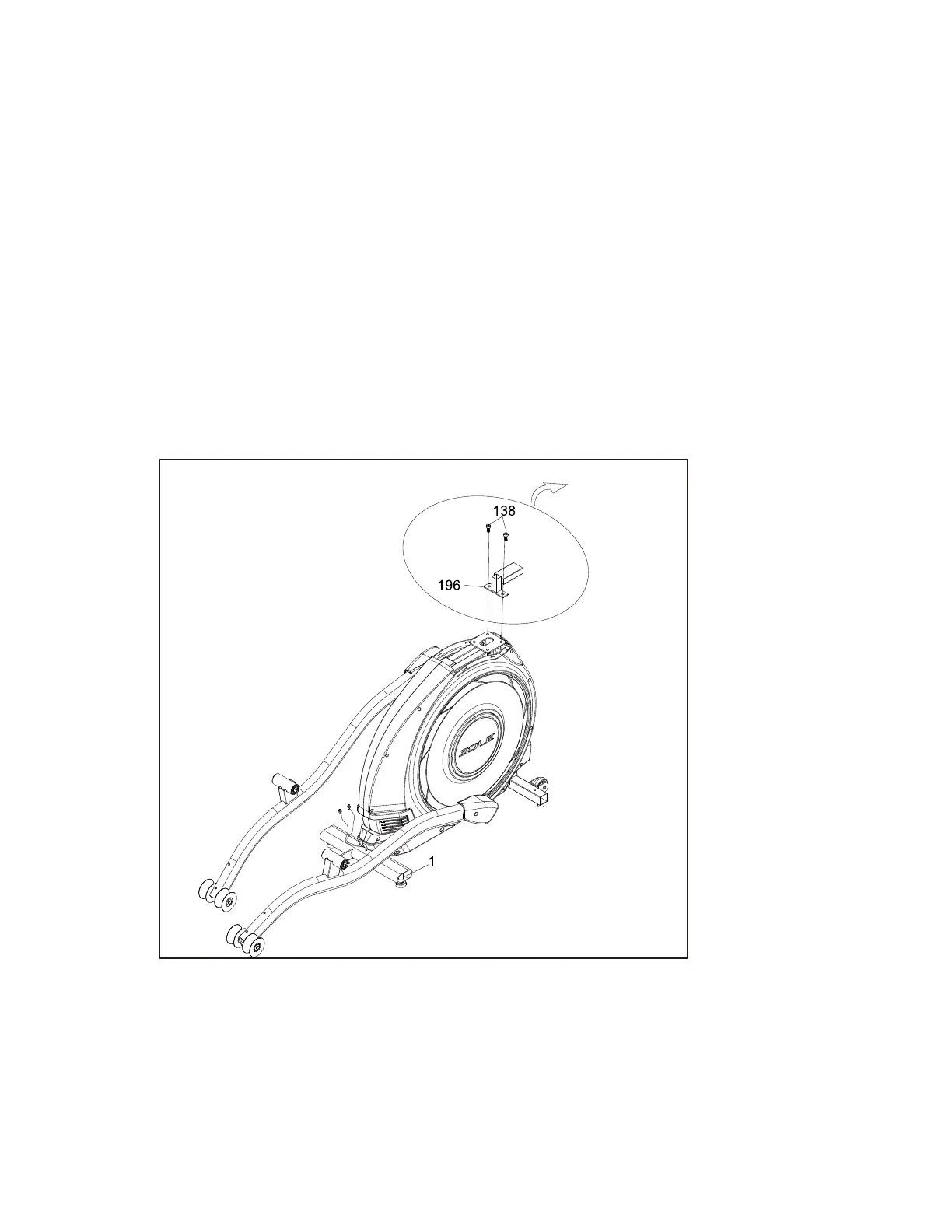

REMOVE SHIPPING STABILIZER
Use M8_L Allen Wrench (182) to release two Socket Head Cap Bolts, which are on
the mainframe for securing the mast tube, to remove and abandon the Side Back
(196).
