SSL Live Installation Information
*4 - Analogue
Analogue Inputs and Outputs on 3 pin XLR connections.
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12 mm (typical)

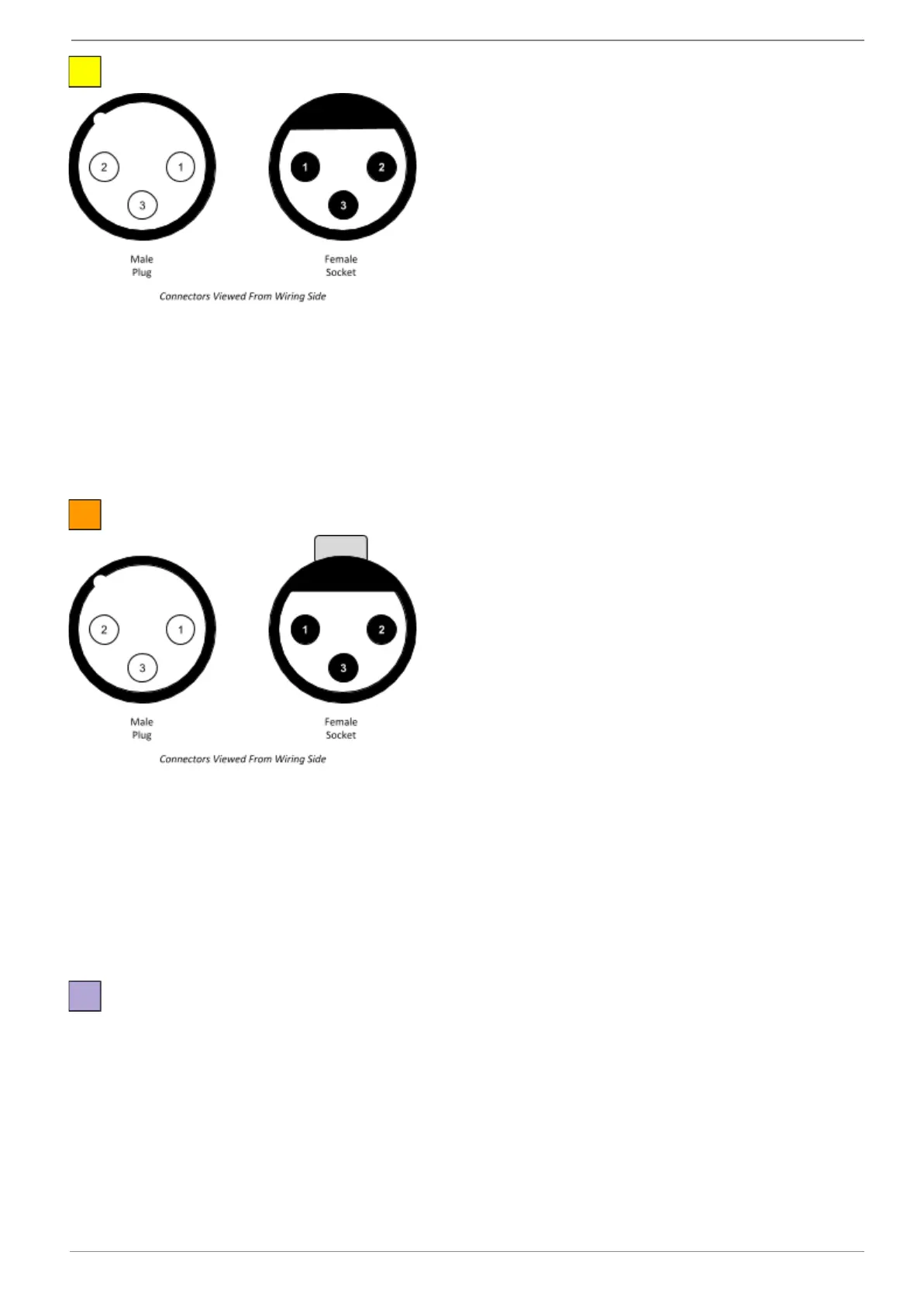

Pinout for balanced audio:
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
*5 - AES/EBU
AES3 Inputs and Outputs on 3 pin XLR connections. (IEC 60958 Type I)
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12 mm (typical)
Pinout for AES3 XLR:
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
*6 - MADI FX Loop
Fibre MADI connection to external effects processor.
Duplex SC multimode socket
Fibre - Multimode 50/125 µm, maximum length <1000 m (quality cables, connections and no
intermediate connections)
www.solidstatelogic.com Page 30 of 43
