SSL Live Installation Information
Optional Console Stand

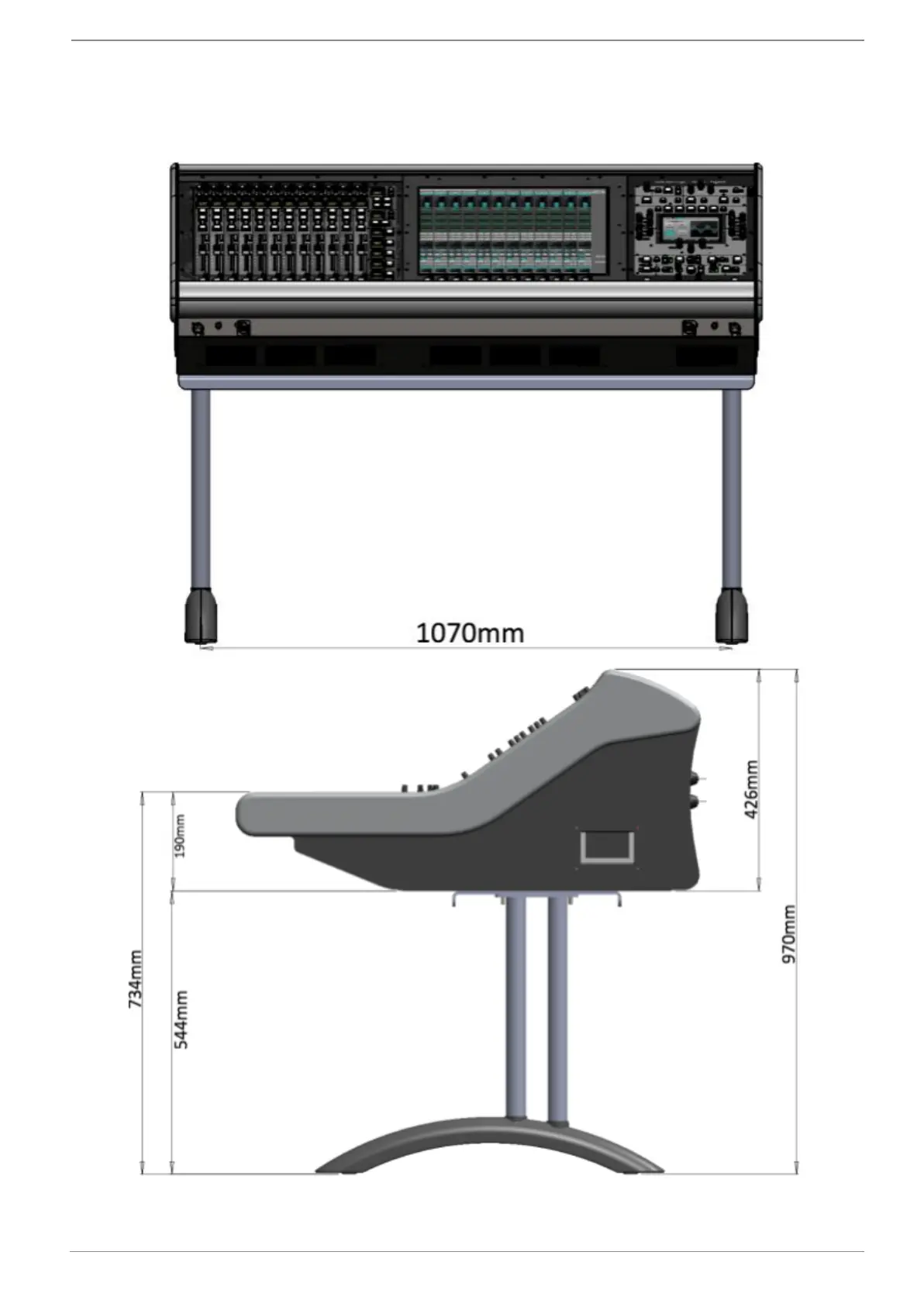

Console Dimensions with optional stand:
(figures in millimeters)
L500 / L500 Plus / L550 (SSL part 62A7000XL)
www.solidstatelogic.com
Page 41 of 43
40
42
Table of Contents
Table of Contents
2
Maintenance: Dust Guards
4
Live Console Synchronisation & Clocking
4
Clocking in General
4
Selecting a Clock Source
4
Clocking Via a Blacklight II Concentrator
5
Clocking over Dante
5
Clocking over a BLII/X-Light Bridge
6
Setting the Sample Rate
7
Clocking MADI Stageboxes
7
Daisy-Chaining MADI Stageboxes
8
AES/EBU Connections
8
L100 Console
10
L100 Connections - Front
10
L100 Console Connections - Rear
10
L100 Console Weight, Power & Dimensions
11
L200 Connections - Front
12
L200 Console Connections - Rear
12
L200 Console Weight, Power & Dimensions
13
L300 & L350 Consoles
14
L300 & L350 Connections - Front
14
L300 & L350 Connections - Rear
14
L300 & L350 Console Weight, Power & Dimensions
15
L500 Plus Console
16
L500 Plus Connections - Front
16
L500 Plus Connections - Rear
16
L500 Plus Console Weight, Power & Dimensions
17
L550 Console
18
L550 Plus Connections - Front
18
L550 Plus Connections - Rear
18
L550 Console Weight, Power & Dimensions
19
Console Remote, Timecode & Sync Panel
20
Remote Tile
21
Remote Tile Weight, Power & Dimensions
21
ML 32.32 5U MIC/Line Stagebox
23
ML I.32 5U MIC/Line Input Stagebox
24
ML O.32 5U Line Output Stagebox
24
ML 32.32 Weight & Dimensions
24
D 32.32 AES Digital 2U Stagebox
25
D 32.32 Weight & Dimensions
25
BLII.D 2U Blacklight-MADI Concentrator
26
BLII.D Weight & Dimensions
26
Net I/O BLII Bridge - Blacklight II to Dante Bridge
27
BLII Bridge Weight & Dimensions
27
Net I/O X-Light Bridge
28
X-Light Bridge Weight & Dimensions
28
Connections - Key
29
Typical Installation Diagrams
37
Simple Single System
37
Blacklight II Single System (with Redundancy)
38
Dual Console MADI System
39
Dual Console System with Blacklight from each Console
40
Optional Console Stand
41
L500 / L500 Plus / L550 (SSL Part 62A7000XL)
41
L300 / L350 (SSL Part 62A7300XL)
42
