SSL Live Installation Information

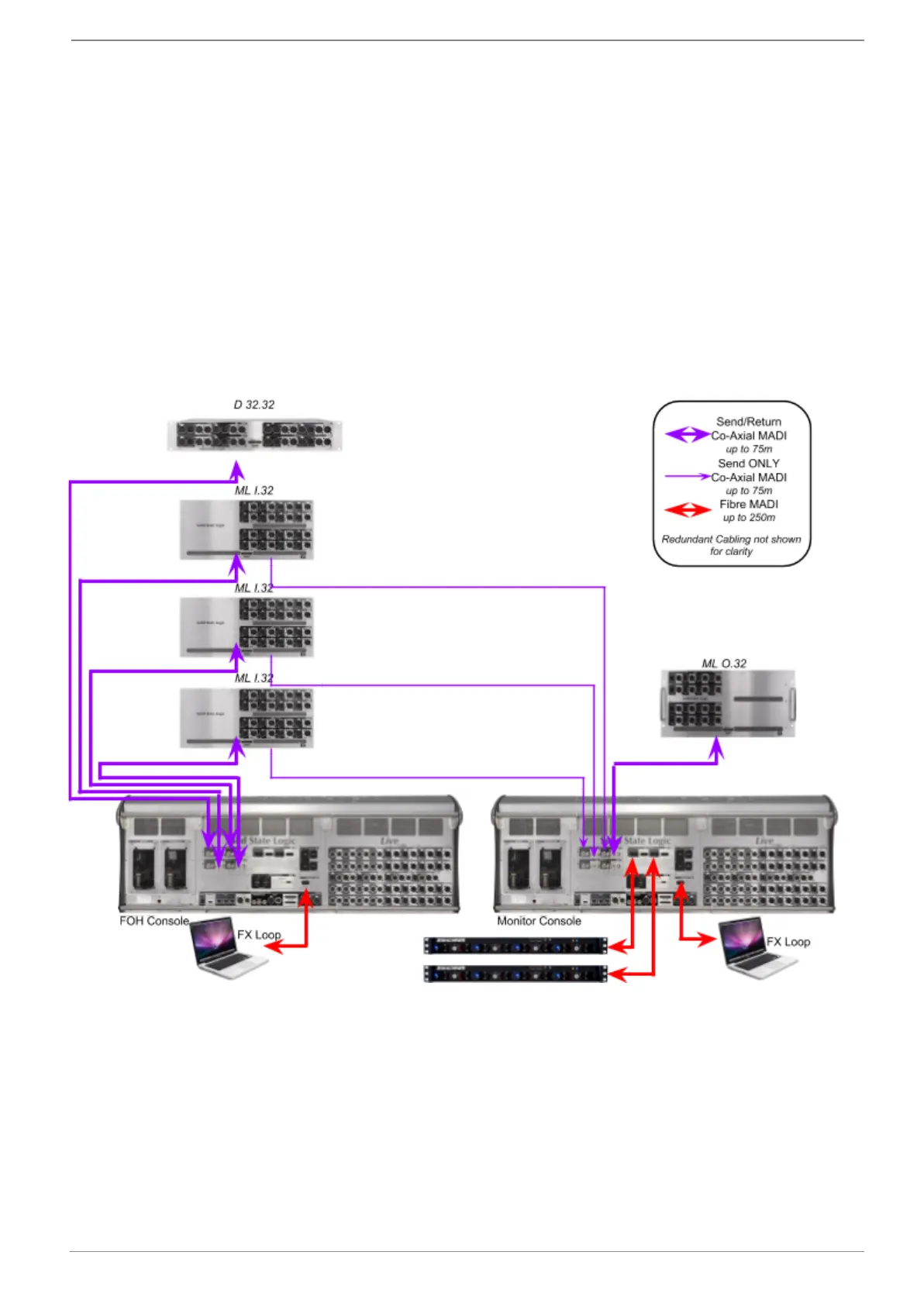

Dual Console MADI System
Two L500 Plus Control Surfaces (FOH and Monitors) shown with optional local IO and additional Co-ax
MADI interface to provide 32 analogue IO and 16 AES IO at the consoles, 12 MADI ports plus MADI FX
Loop.
FOH Console has redundant MADI RX/TX to MADI ports 1 & 2 of the ML I.32 stageboxes. Monitor
Console is connected to the TX only connection from MADI ports 3 & 4. FOH console controls the Mic
Amp Gain, Monitor console uses Gain Sharing to adjust local levels.
3 off additional I.32 stageboxes provide an additional 96 Mic/Line inputs
1 off additional D 32.32 AES boxes provide 32 AES digital IO
1 off ML O.32 stageboxes provide 32 line outputs on stage from Monitor console
Total IO of 96 Mic/Line Inputs, 32 Line Outputs, 32 AES IO, 30 GP inputs, 25 GP Outputs
