SSL Live Installation Information

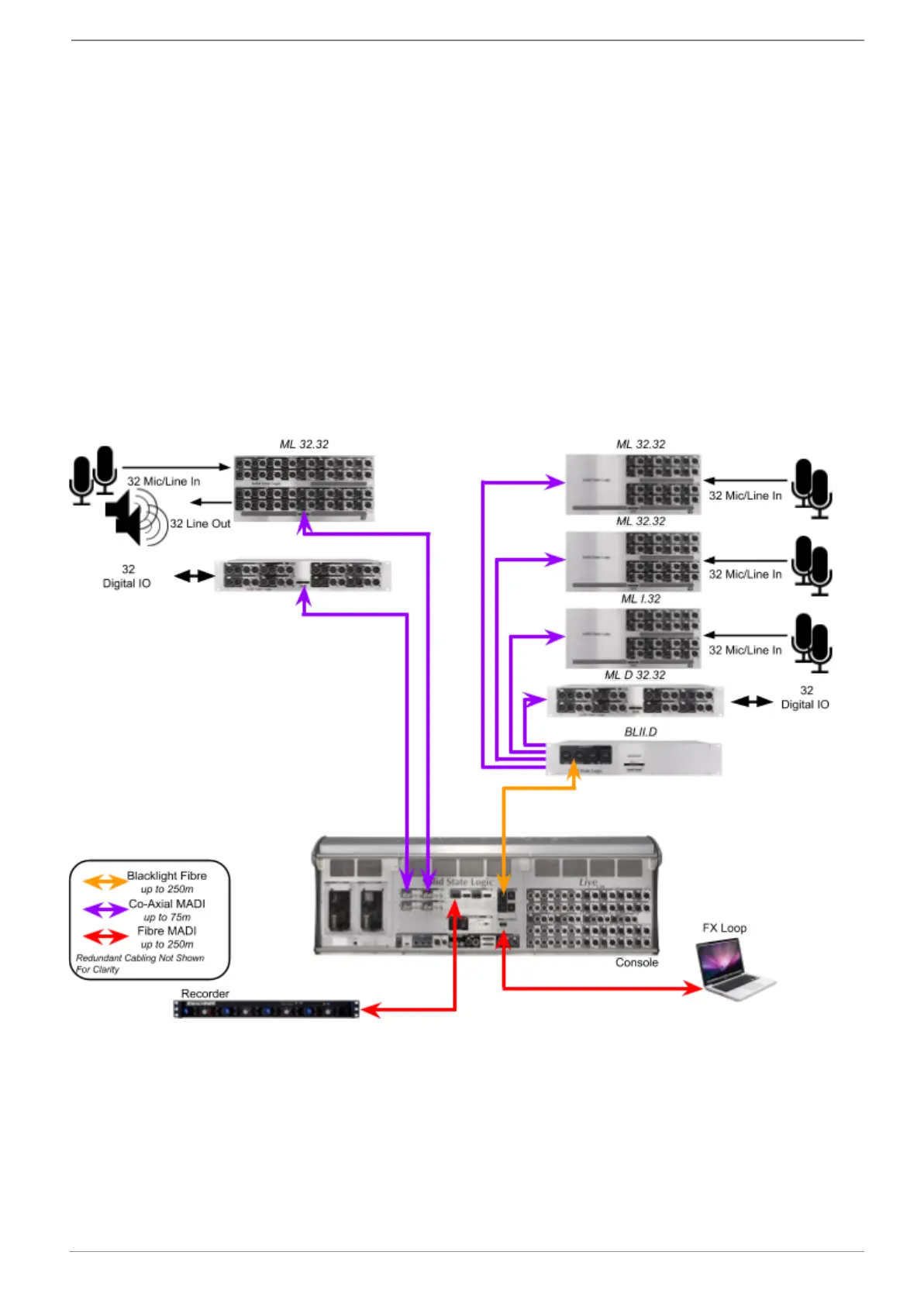

Blacklight II Single System (with Redundancy)
L500 Plus Control Surface shown with optional local IO, additional Co-ax MADI interface and optional
4 port BL II Blacklight interface to provide 32 analogue IO and 16 AES IO at FOH position. 12 MADI
ports plus MADI FX Loop.
2 pairs of Blacklight II connections provide 2 x 256 channels to/from stage using fibre up to <300m
(quality cables, connections and no intermediate connections).
1 off BLII.D Blacklight II MADI concentrator provides 4 redundant on-stage MADI ports connected
to...
3 off additional I.32 stageboxes provide an additional 96 Mic/Line inputs
1 off additional D 32.32 AES boxes provide 32 AES digital IO
Co-axial MADI connected IO
1 off ML 32.32 stageboxes provide 32 Mic/Line inputs and 32 line outputs on stage
1 off additional D 32.32 AES boxes provide 32 AES digital IO
Total IO of 128 Mic/Line Inputs, 32 Line Outputs, 64 AES IO, 36 GP inputs, 30 GP Outputs
www.solidstatelogic.com Page 38 of 43
