SSL Live Installation Information
*15a - Console MIDI Connections
5-pin DIN standard MIDI connections for In, Out & Thru connections:
midi.org/techspecs/electrispec.php
Used for MIDI Timecode (MTC) and other MIDI control triggers/commands.
*15b - Stagebox MIDI Connections
5-pin DIN standard MIDI connections for In & Out connections.
*16 - AES 11 DARS Reference
AES11 DARS Input and Output on 3 pin XLR connections. (IEC 60958 Type I)
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12 mm (typical)

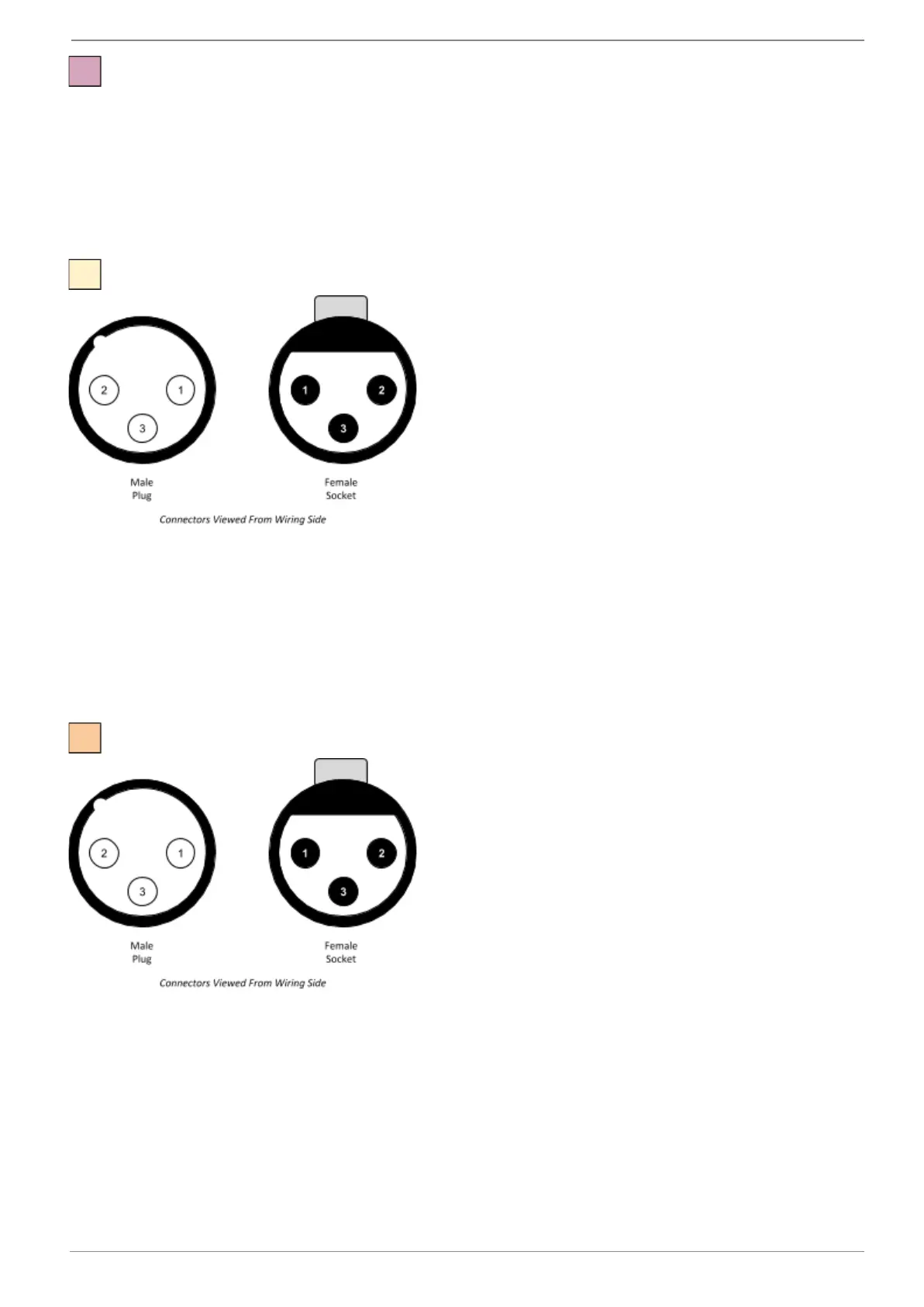

Pinout for AES3 XLR:
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
*17 - LTC Connectors
Linear Time Code (LTC) in and out using Balanced XLR connections.
Dimensions: Cable Dia: 19 x 60 mm (approx.) 8-12 mm (typical)
Pinout for LTC In and Out
Pin 1 Screen/Ground
Pin 2 Hot (+ve)
Pin 3 Cold (-ve)
www.solidstatelogic.com Page 32 of 43
