Solid State Logic Live L350 User Manual

SSL Live Installation Information
*19b - Console GPIO Connections
Connector Type: 25-Way D-Type Male (Inputs) and Female (Outputs)
Dimensions: Cable Dia: 55 x 15 mm (approx.) 8 mm (typical)
Screwlock thread: 440-UNC
12 opto-isolated GP input and 12 relay-closure outputs

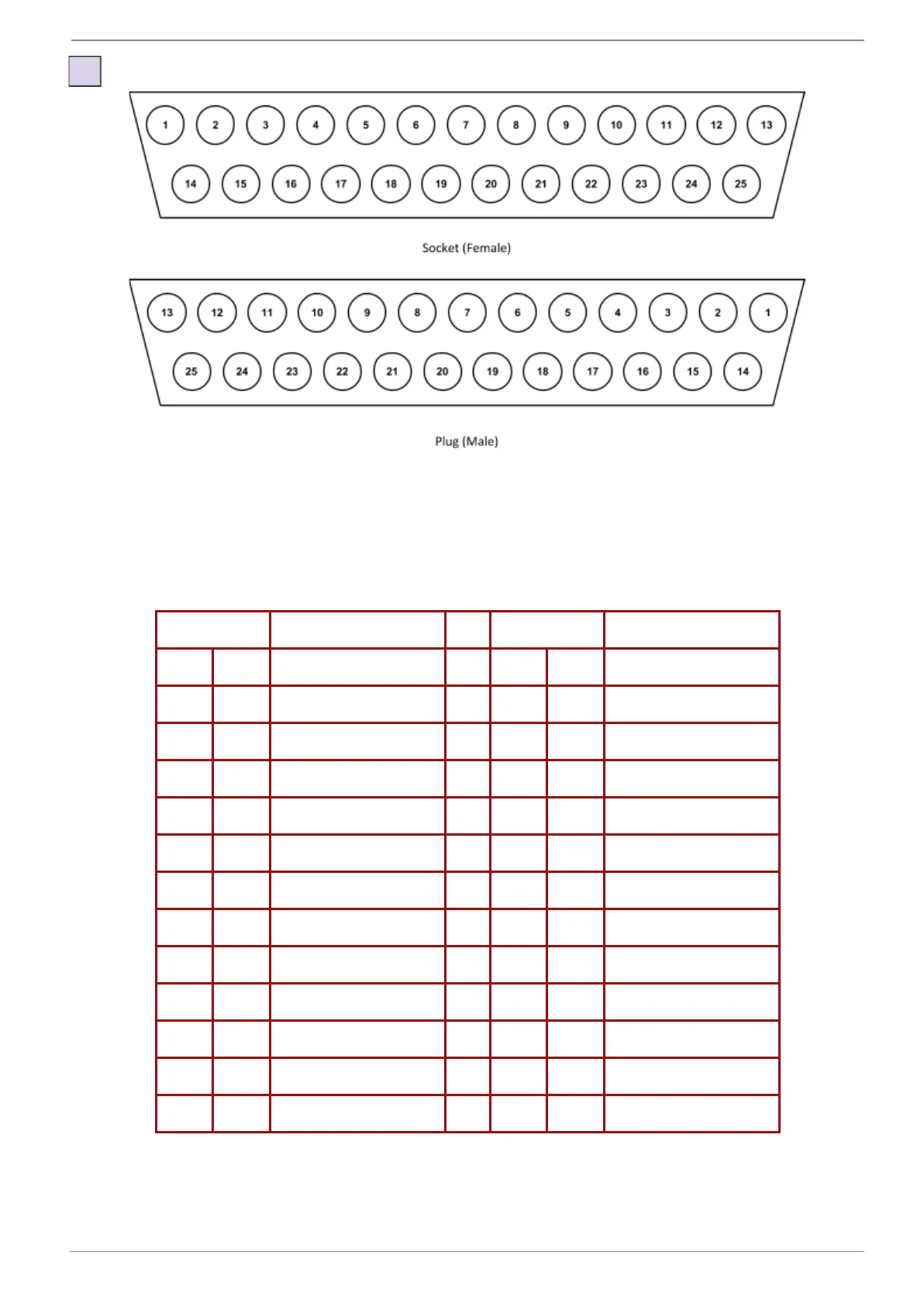

GPIO Connector Pinout
GP Input - D-type Male
Pin
Description
Pin
Description
1
Input 1A
7
Input 7A
14
Input 1B
20
Input 7B
2
Input 2A
8
Input 8A
15
Input 2B
21
Input 8B
3
Input 3A
9
Input 9A
16
Input 3B
22
Input 9B
4
Input 4A
10
Input 10A
17
Input 4B
23
Input 10B
5
Input 5A
11
Input 11A
18
Input 5B
24
Input 11B
6
Input 6A
12
Input 12A
19
Input 6B
25
Input 12B
13
0V
www.solidstatelogic.com Page 34 of 43
