Solid State Logic LIVE User Manual

SSL Live Installation Information
www.solidstatelogic.com Page 10 of 45

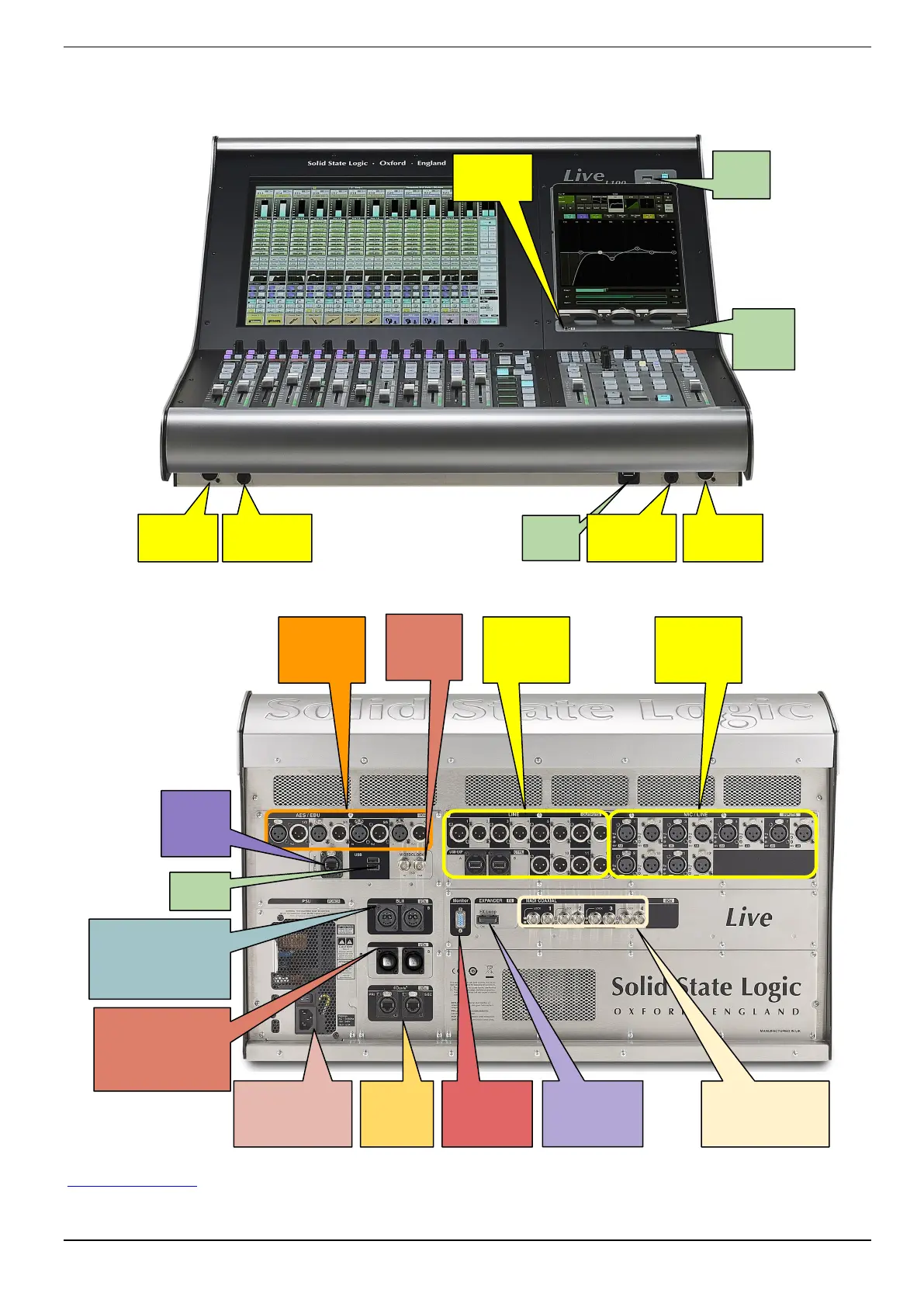

L100 Console (Includes L100 Plus Model)
L100 Connections - Front
L100 Console Connections - Rear
Connections Key
USB
*8a
Female XLR
T/B Mic A
*4
USB
*8a
¼” Jack
Headphone A
*10
Female XLR
T/B Mic B
*4
¼” Jack
Headphone B
*10
⅛” Stereo
iJack Input
*11
Power
USB Port
*8b
Mains Power Inlet
(Redundant PSU
option available)
*1
Local MADI
4 Ports Coaxial
*2
Local SC Fibre
MADI FX Loop
*6
Optional Blacklight II
Neutrik opticalCON
DUO Connectors
0 or 2 connectors
*3a
VGA Monitor
for Ext
Overview
*7
USB
*8a
Analogue
Mic/Line IP
1-12
*4
Analogue
Line OP
1-12
*4
AES 1-8
4pr In
4pr Out
*5
Optional
Dante
Interface
*9
Cat 5e
Network
*14
Wordclock
*13
Optional X-Light
Neutrik opticalCON
QUAD Connectors
0 or 2 connectors
*22
