Solid State Logic LIVE User Manual

SSL Live Installation Information
www.solidstatelogic.com Page 18 of 45

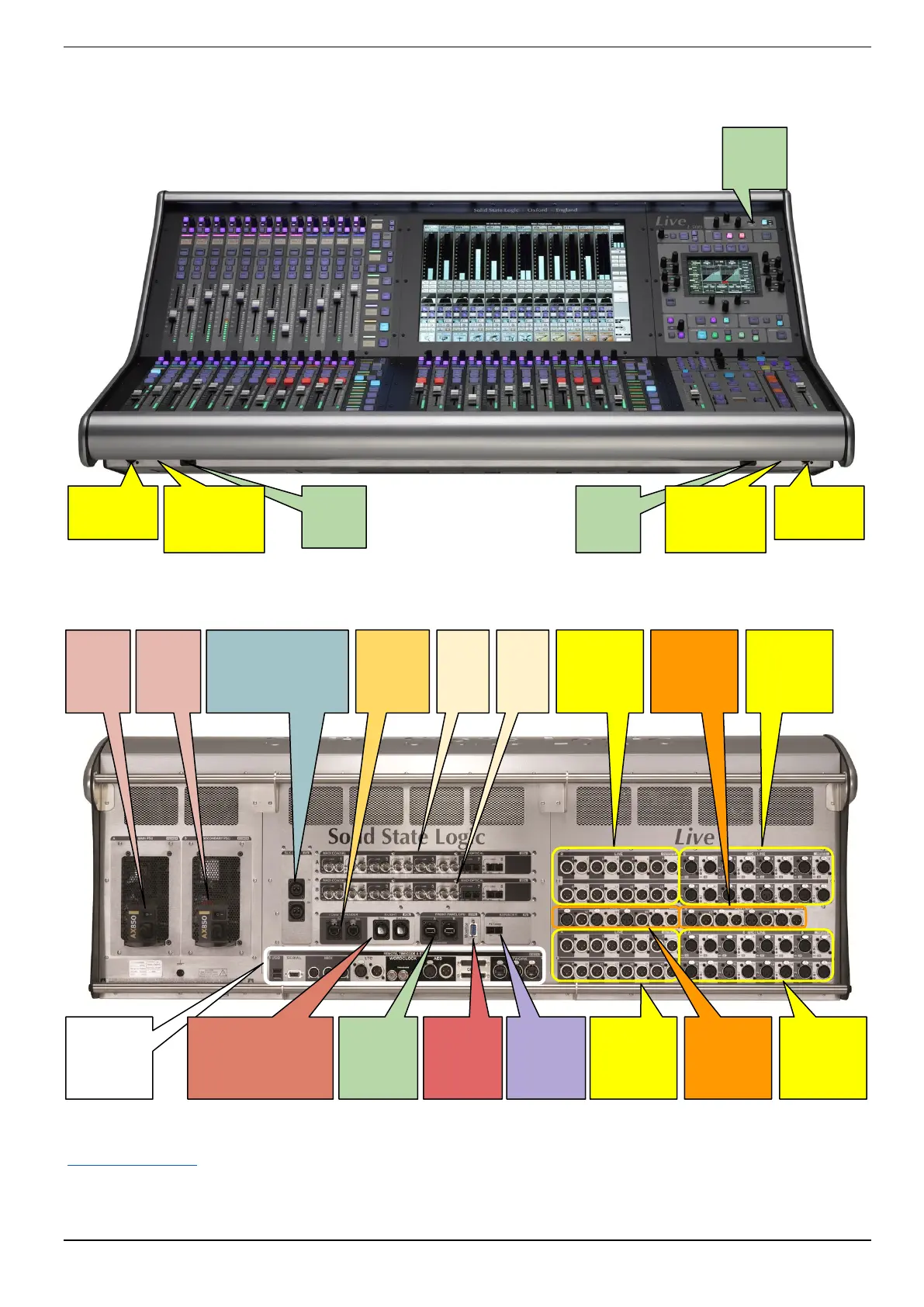

L550 Console (Includes L550 Plus Model)
L550 Connections - Front
L550 Connections - Rear
Connections Key
USB
*8a
Female XLR
T/B Mic A
*4
USB
*8a
USB
*8a
¼” Jack
Headphone A
Solo Ch. 1
*10
Female XLR
T/B Mic B
*4
¼” Jack
Headphone B
Solo Ch. 2
*10
Mains
Power
Inlet &
Switch
*1
Optional
Analogue
Mic/Line IP
17-32
*4
Optional
Analogue
Line OP
17-32
*4
Optional AES
9-16
4pr In
4pr Out
*5
Standard
Analogue
Mic/Line IP
1-16
*4
Standard
Analogue
Line OP 1-16
*4
Standard
AES 1-8
4pr In
4pr Out
*5
Local
MADI A
*2
Local
MADI B
*2
Local SC
Fibre
MADI FX
Loop
*6
Optional Blacklight II
Neutrik opticalCON
DUO Connectors
0 or 2 connectors
*3a
VGA
Monitor for
Ext
Overview
*7
USB
*8a
Sync -
Panel
details on
page
22
Dante
Interface
*9
Optional X-Light
Neutrik opticalCON
QUAD Connectors
0 or 2 connectors
*22
Mains
Power
Inlet &
Switch
*1
