SSL Live Installation Information
www.solidstatelogic.com Page 40 of 45

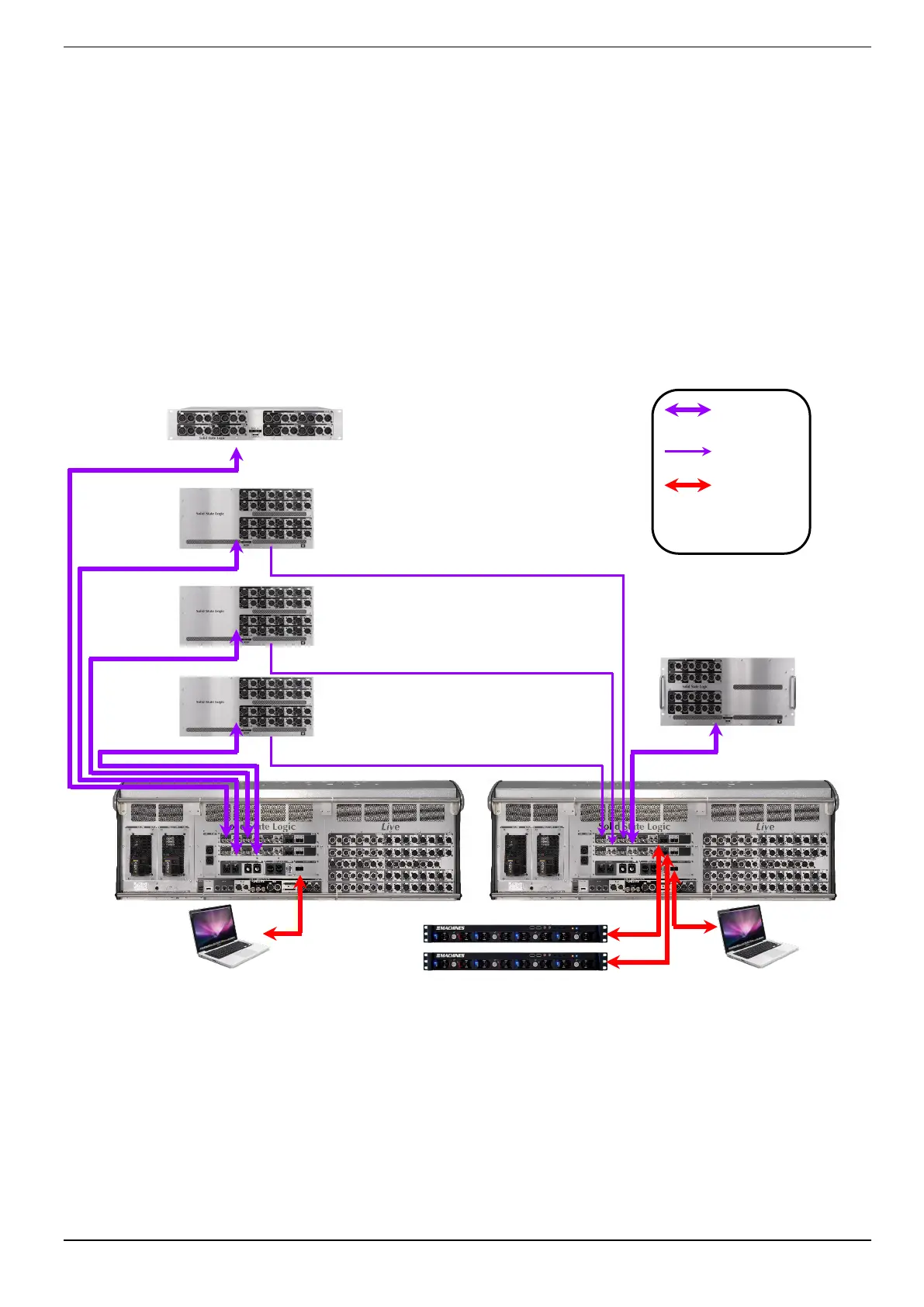

Dual Console MADI System
Two L550 Control Surfaces (FOH and Monitors) shown to provide 32 analogue IO and 16 AES IO at
the consoles, 16 MADI ports plus MADI FX Loop.
3 off additional ML I.32 stageboxes provide an additional 96 Mic/Line inputs
FOH Console has redundant MADI RX/TX to MADI ports 1 & 2 of the ML I.32 stageboxes. Monitor
Console is connected to the TX only connection from MADI ports 3 & 4. FOH console controls the Mic
Amp Gain, Monitor console uses Gain Sharing to adjust local levels.
1 off additional D 32.32 AES boxes provide 32 AES digital IO to FOH console
1 off ML O.32 stageboxes provide 32 line outputs on stage from Monitor console
Total remote IO of 96 Mic/Line Inputs, 32 Line Outputs, 32 AES IO, 30 GP inputs, 25 GP Outputs
Send/Return
Coaxial MADI
Fibre MADI
up to 250m
ML I.32
ML I.32
D 32.32
ML I.32
FX Loop
FX Loop
ML O.32
Send ONLY
Coaxial MADI
Redundant cabling not
shown for clarity
FOH Console
Monitor Console
