D 32.32 AES Digital 2U Stagebox

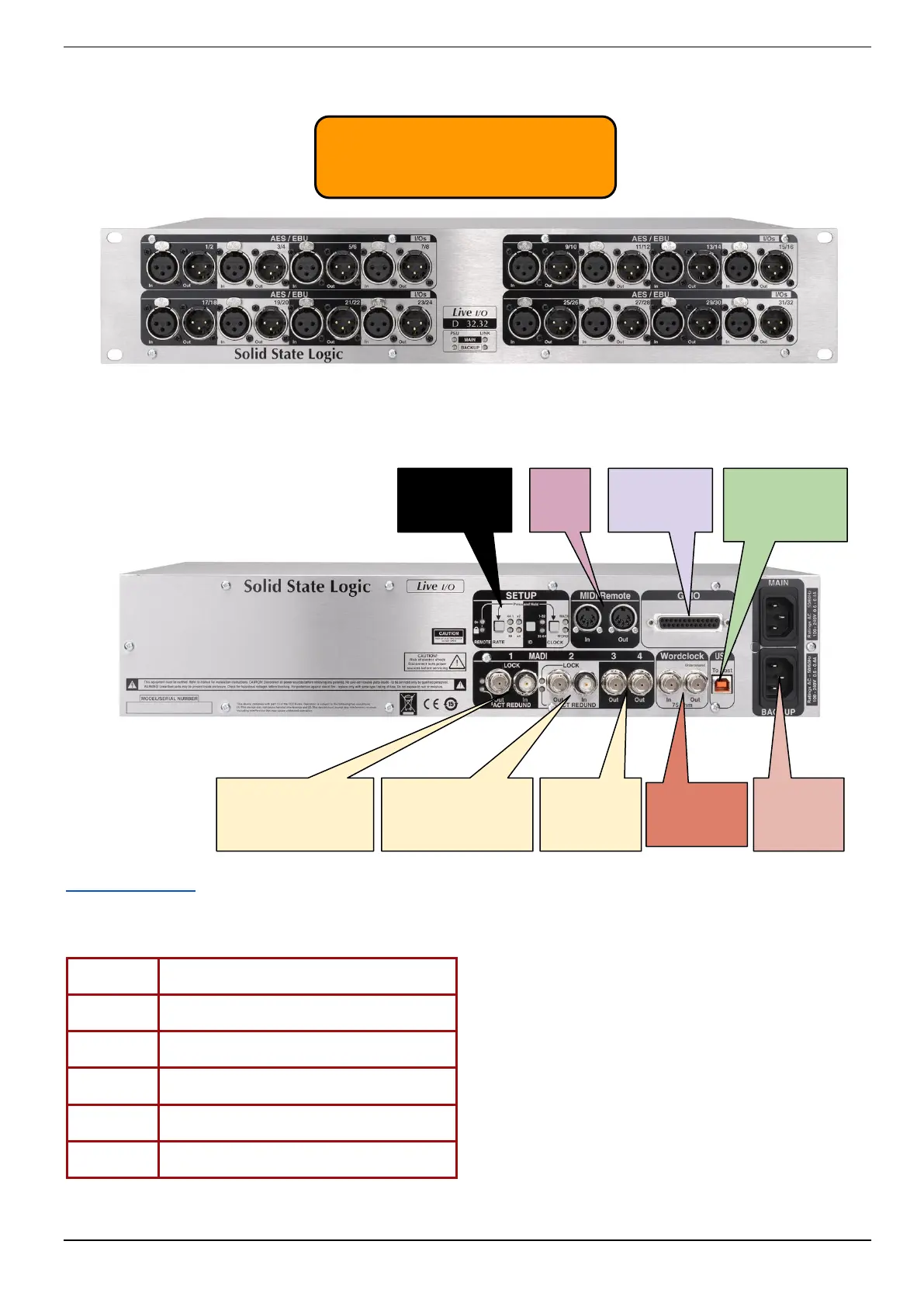

Connections Key
D 32.32 Weight & Dimensions
Height
2U - 89 mm (3.5 inches)
Depth
305 mm (12 inches)
Width
483 mm (19 inches)
Weight
6.2 kg
Power
<60 W
Ratings
100–240 V AC, 50/60 Hz, 0.6-0.4 A
32 AES Digital Inputs/Outputs
(16 AES Pairs)
Arranged as In/Out Pairs
*5
Mains Power
Inlet
*1
Primary MADI Coaxial
Connectors
*2
Maintenance USB
Port
*24
MIDI
*15b
Local
Wordclock
*13
GPIO
In & Out
*19a
Redundant MADI
Coaxial Connectors
*2
Additional
MADI outputs
*2
Local Setup
Controls
*20
